Straw Pellet Machine – 0.3-3 t/h Biomass Fuel Production
Straw pellet machine is a heavy-duty industrial solution designed for granulating biomass materials into high-density fuel pellets. With capacities ranging from 0.3 to 3 tons per hour, it converts agricultural and forestry residues into clean, high-calorific energy source for industrial and residential applications

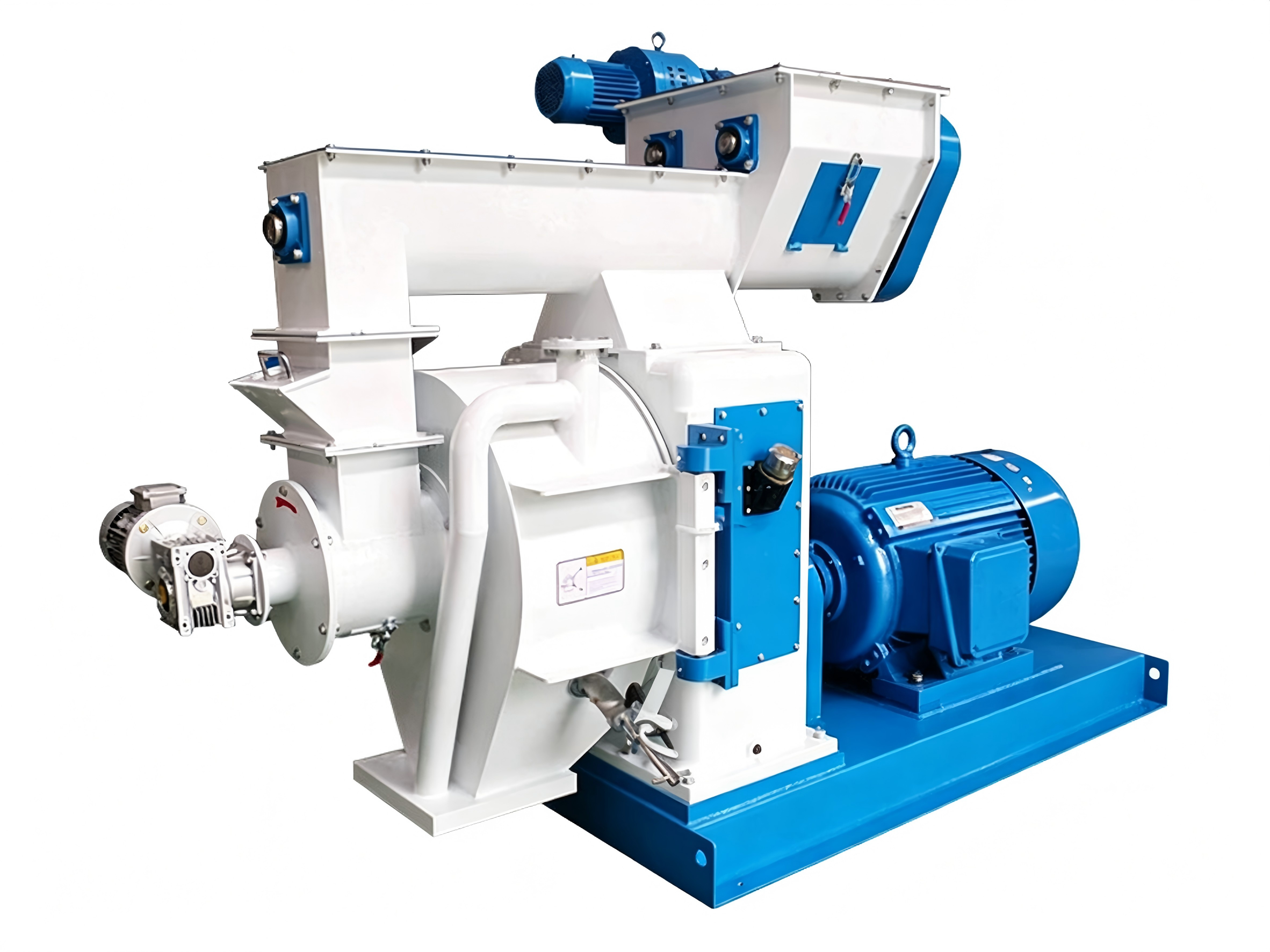

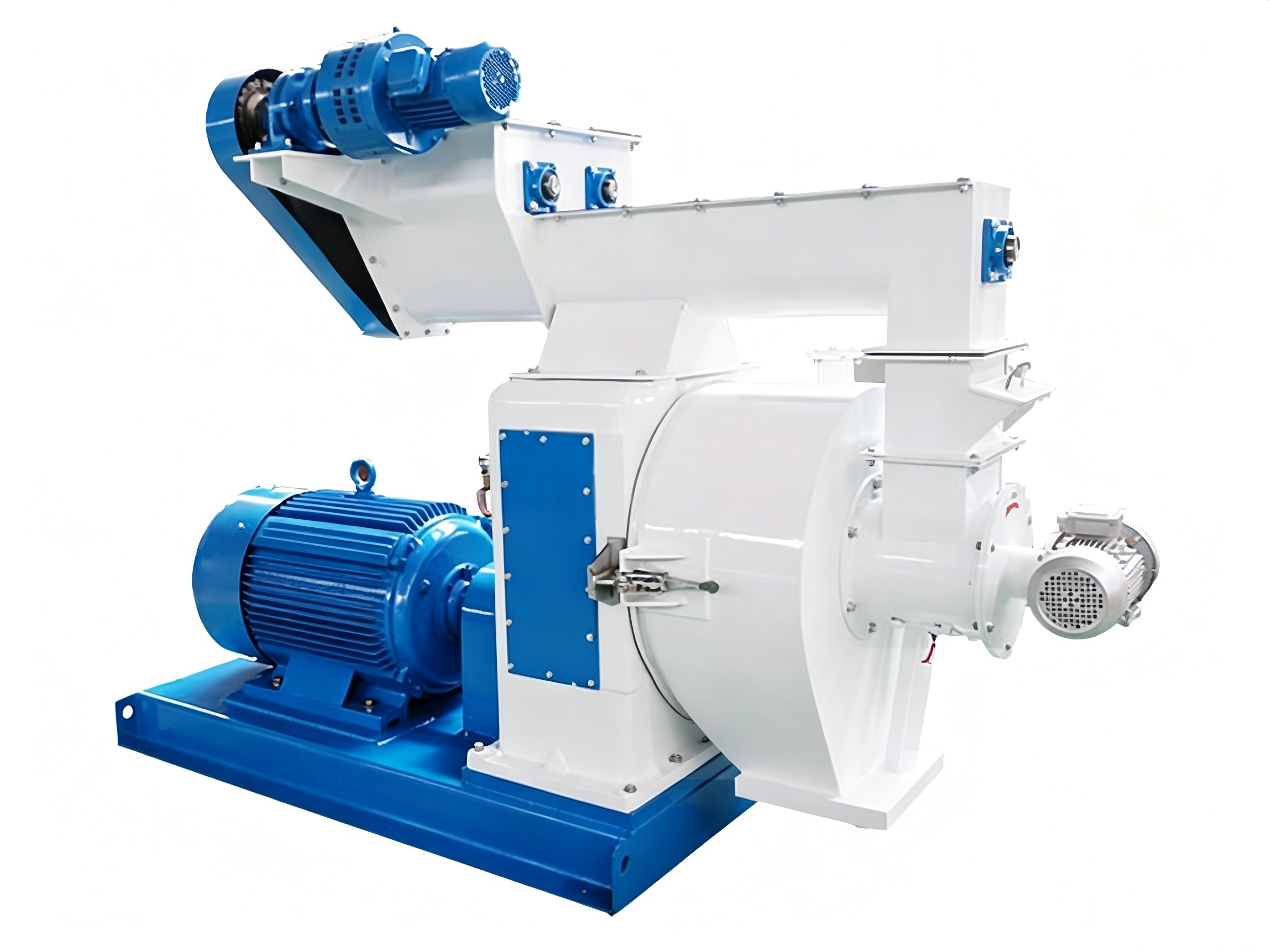

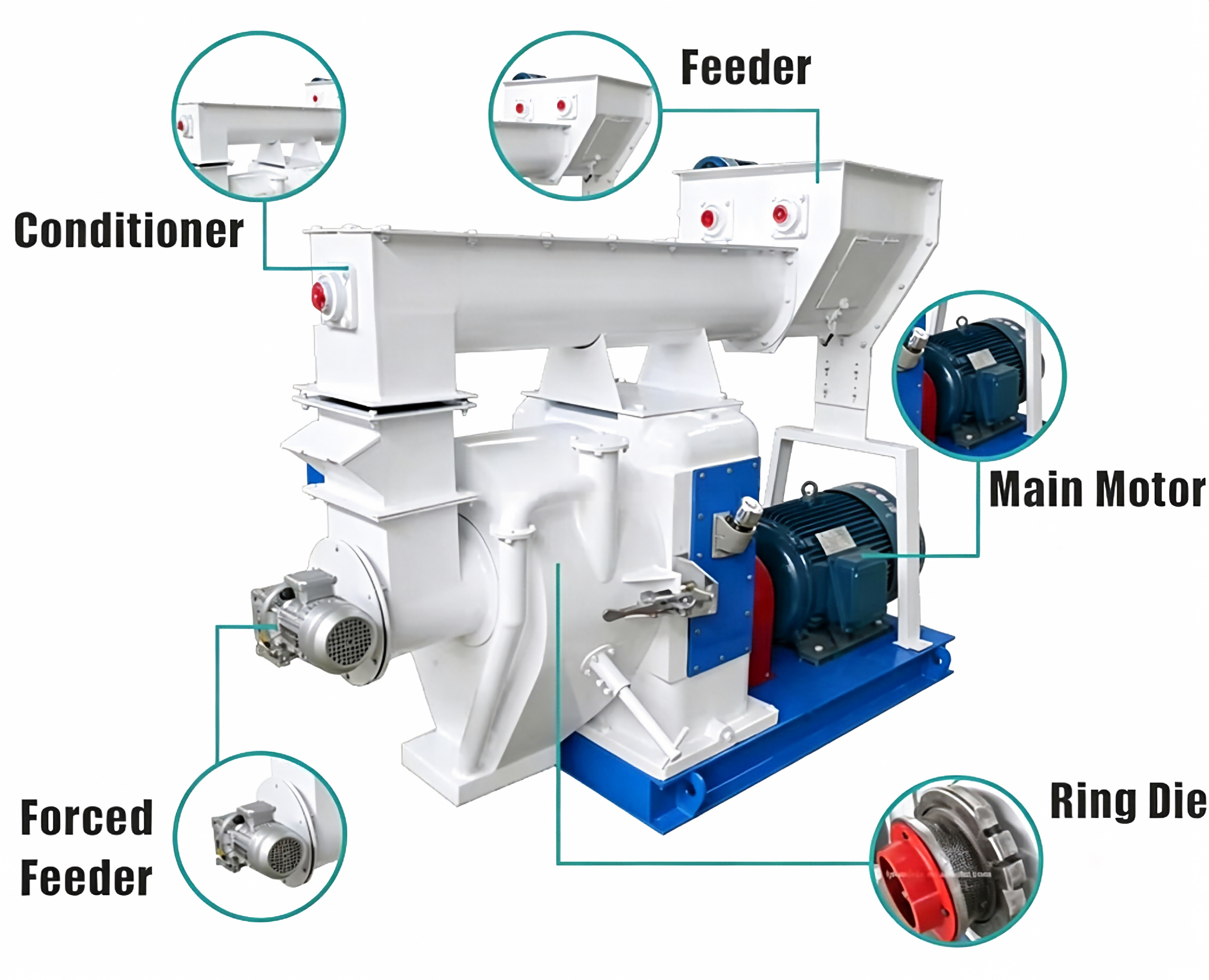

SYLP Series Straw Pellet Machine
1.Product Introduction
straw pellet machine is a heavy-duty industrial solution designed for granulating biomass materials into high-density fuel pellets. With capacities ranging from 0.3 to 3 tons per hour, it converts agricultural and forestry residues into clean, high-calorific energy source for industrial and residential applications
2. Technical Parameters
| Model | Power (kW) | Feeder Power (kW) | Conditioner Power (kW) | Forced Feeding Power (kW) | Pellet Size (mm) | Capacity (t/h) | Dimension (mm) |
| SYLP 250 | 22 | 0.75 | 2.2 | 0.75 | 6 – 12 | 0.1 – 0.5 | 2200*1400*1600 |
| SYLP 320 | 37 / 44 | 1.5 | 3 | 0.75 | 6 – 12 | 0.3 – 1.0 | 2400*1500*1800 |
| SYLP 350 | 30*2 | 1.5 | 3 | 0.75 | 6 – 12 | 0.8 – 1.5 | 2900*1600*1800 |
| SYLP 420 | 55*2 | 1.5 | 5.5 | 0.75 | 6 – 12 | 1.5 – 2.5 | 3500*1700*1900 |
| SYLP 508 | 75*2 | 1.5 | 5.5 | 0.75 | 6 – 12 | 2.0 – 3.0 | 4300*1800*2000 |
3. Key Features
| Feature | Benefit |
|---|---|
| Transforms waste into valuable fuel | Converts wood scraps, boards, branches, off-cuts into high-density pellets, reducing waste and creating clean energy |
| High-heat & low-emission fuel | Pellets provide 4,500 kcal/kg heat, burn cleanly with minimal ash (usable as fertilizer), effectively replacing coal |
| Industrial capacity | Heavy-duty construction ensures stable, continuous 24/7 operation |
| Durable & reliable design | Key components treated with vacuum quenching and other wear-resistant processes, ensuring long service life and low maintenance costs |
| Strong ROI with wide use | Low-cost raw materials produce high-value, transport-friendly pellets ideal for factory boilers and heating plants |
4. Raw Material Applications
Processes a wide range of biomass materials:
-
Wood chips, sawdust, branches, wood off-cuts
-
Rice husk, wheat straw, cotton stalk
-
Palm shell, sunflower husk, olive residue
-
Bagasse and other agricultural residues
5. Applications of Finished Pellets
-
Industrial boiler fuel
-
Factory heating plants
-
Residential heating
-
Coal replacement for clean energy
