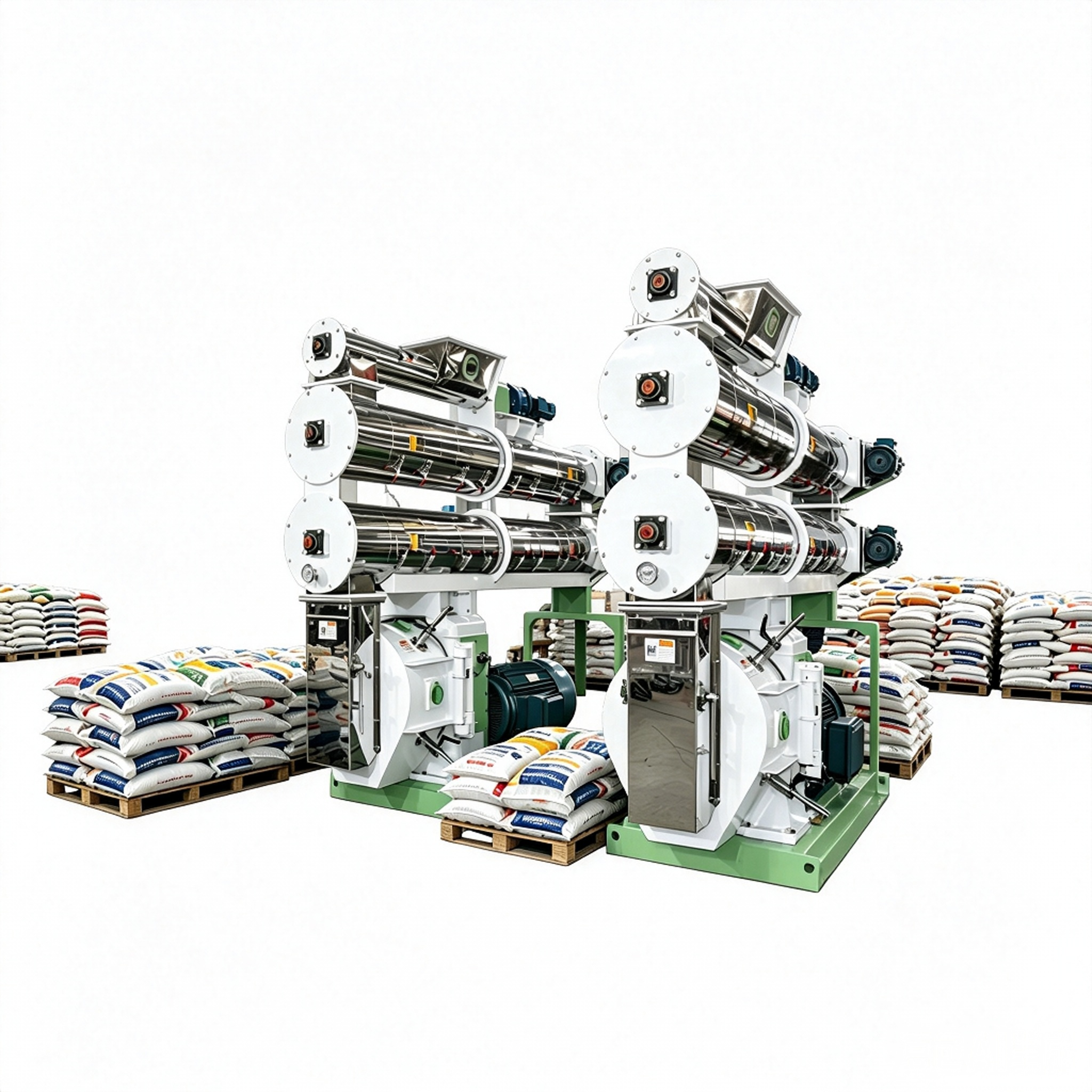

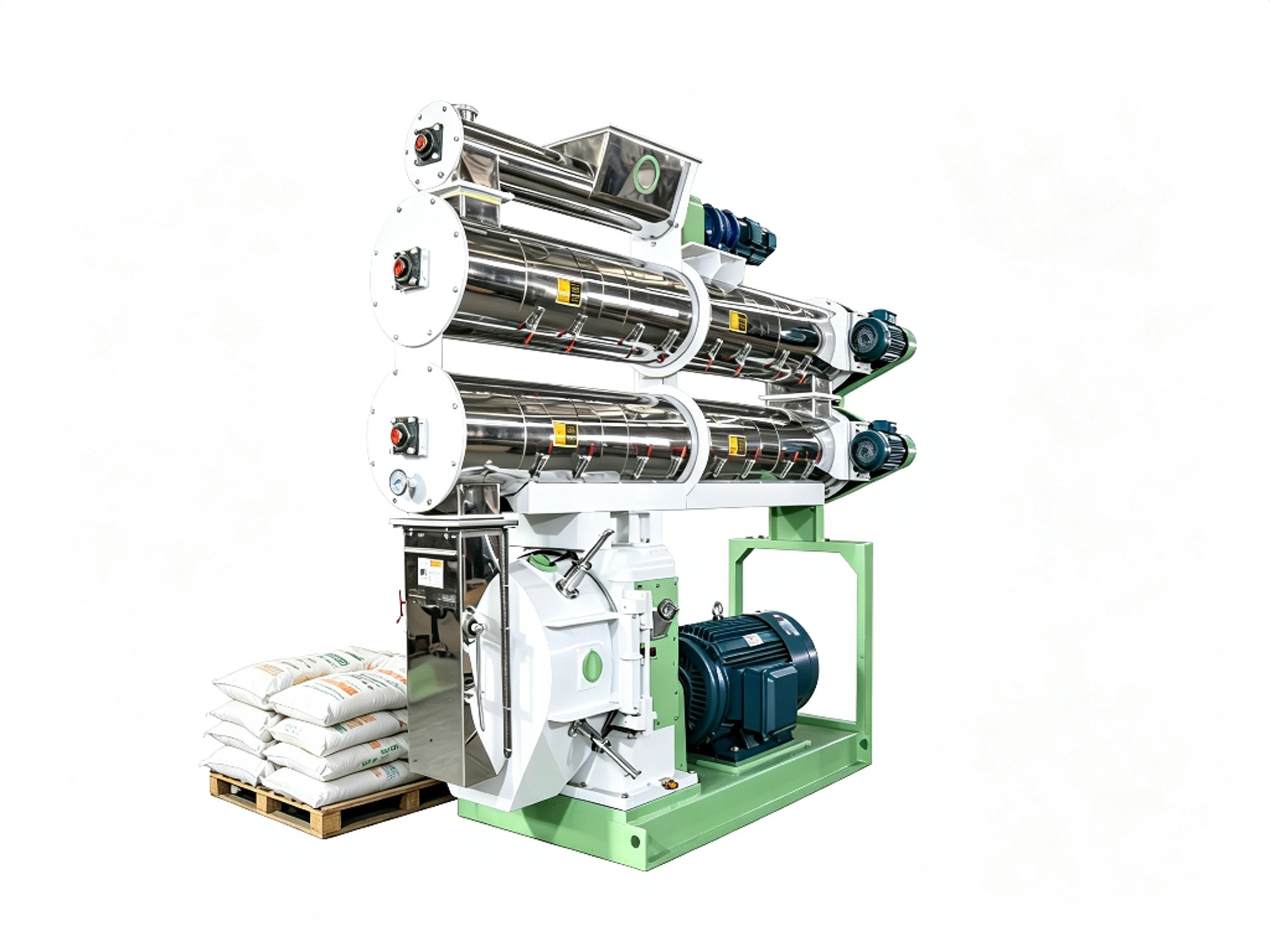

Full Automatic 20-28TPH Pellet Machine – Heavy-Duty Poultry & Pig Feed Pellet Making Machine for Large Farms

Contact
Fully automatic 20–28TPH pellet mill for large poultry and pig farms.

Heavy-duty gear drive and durable ring die ensure 24/7 reliability.

PLC touch-screen control for one-touch start and stable quality.

Advanced conditioning produces dense, uniform pellets with low fines.

Full Automatic 20-28TPH Pellet Machine – Heavy-Duty Poultry & Pig Feed Pellet Making Machine for Large Farms

Short Introduction

  1. This full automatic pellet mill delivers a massive 20–28 tons per hour output, purpose-built for large-scale poultry and pig feed operations demanding uninterrupted high-volume production.

  2. Heavy-duty construction with reinforced main shaft and wear-resistant ring die ensures exceptional durability under continuous 24/7 loading, minimizing unplanned downtime.

  3. Fully integrated PLC auto-control system monitors real-time parameters such as motor load, die temperature, and material flow, enabling one-touch start and consistent pellet quality.

  4. Designed specifically for high-fiber and high-protein formulations common in pig and poultry rations, it produces dense, uniform pellets with low fines and excellent water stability.

Key Features

Fully Automatic PLC Control

  • Touch-screen interface with preset recipes for different feed types.

  • Automatic start/stop sequencing of feeder, conditioner, and main motor.

  • Real-time alarm and fault diagnosis for reduced operator intervention.

Heavy-Duty Gear Drive

  • Precision-ground hardened gears handle high torque loads without belt slippage.

  • Built-in overload protection extends gearbox and bearing life.

High-Efficiency Conditioning System

  • Double-layer jacketed conditioner with variable-speed drive for precise steam and retention time control.

  • Achieves optimal gelatinization for piglet and broiler feeds, improving digestibility and pellet hardness.

Durable Ring Die & Rollers

  • Forged high-chromium stainless steel ring die with vacuum heat treatment for extended wear life.

  • Quick-release die clamp and hydraulic roller adjustment simplify maintenance.

Energy-Saving Design

  • Direct-coupled main motor reduces energy loss compared to belt-driven systems.

  • Frequency inverter on feeder and conditioner optimizes power consumption per ton of output.

Technical Highlights (20-28TPH Model)

Parameter Specification
Capacity 20–28 t/h (depending on recipe and die spec)
Main Motor Power 280–315 kW
Ring Die Diameter 768 mm
Pellet Diameter 2–12 mm (customizable)
Conditioner Power 15 kW
Feeder Power 2.2 kW
Control System Full automatic PLC with HMI touch screen
Lubrication Automatic centralized grease system

Typical Applications

  • Pig feed: Gestation, grower, finisher, and lactating sow formulas.

  • Poultry feed: Broiler starter/grower/finisher, layer mash, and breeder diets.

  • High-moisture or high-fat formulations with proper conditioning adjustment.

Why Choose This Machine for Your Large Farm

  • Labor saving: One operator can manage the entire pelleting line from the control room.

  • Consistent pellet quality: Closed-loop control maintains die temperature and motor amperage within set ranges.

  • Lower cost per ton: High throughput and energy efficiency reduce production costs for large-volume farms.

  • Quick changeover: Switch between pig and poultry recipes in under 15 minutes with preset parameters.
