Double Shaft Paddle Mixer – 1-2 Ton/Batch Animal Feed Mixer Machine for Chicken & Livestock Feed

Contact
Double shaft paddle mixer blends powder, granular, flake and lump materials for feed, food, chemical and pharmaceutical industries.

Mixing time of 30-90 seconds per batch with uniformity variation coefficient below 5% for consistent quality.

Available in 500kg, 1000kg and 2000kg batch capacities with three-row chain drive for stable, quiet operation.

Features bottom double door discharge, spray system, excellent sealing, and full after-sales support.

Double Shaft Paddle Mixer – 1-2 Ton/Batch Animal Feed Mixer Machine for Chicken & Livestock Feed

Product Overview

The Double Shaft Paddle Mixer is a high-efficiency blending machine designed for the feed, food, chemical, and pharmaceutical industries. It uniformly mixes powder, granular, flake, and lump materials with a mixing time of only 60-90 seconds per batch and a batch capacity of 500-2000 kg. Featuring a unique double shaft propeller rotor and three-row chain drive, this mixer delivers fast, homogeneous mixing with stable operation, low noise, and long service life, making it an ideal choice for poultry feed production.

Applications

Widely used in mixing powder, granular, flake, and lump materials across multiple industries:

  • Feed Industry – Chicken, poultry, livestock, and aquatic feed production

  • Food Industry – Ingredient blending for processed foods

  • Chemical Industry – Powder and granule mixing for chemical products

  • Pharmaceutical Industry – Homogeneous blending of medicinal powders and granules

Technical Parameters

Model Power (kW) Capacity (kg/batch) Mixing Time (seconds) Application
9HSZ 1 11 500 60-90 Small to medium feed mills
9HSZ 2 18.5 1000 60-90 Medium feed production
9HSZ 4 37 2000 60-90 Large-scale feed plants

Batch capacity and mixing time vary based on material characteristics and formula composition.

Key Features

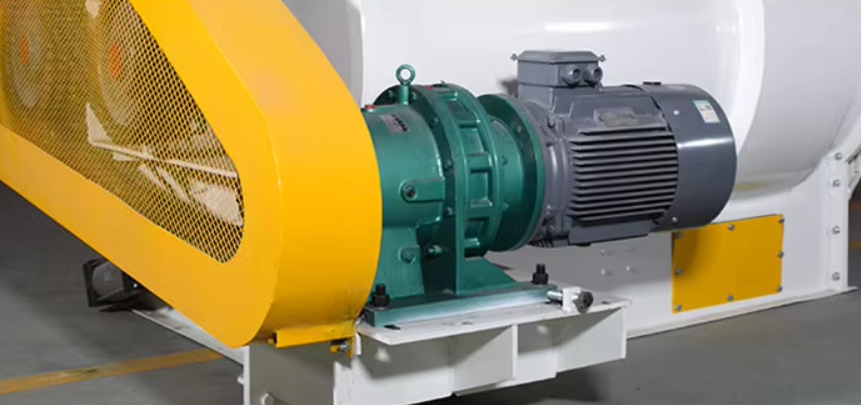

  1. Three-Row Chain Drive – Ensures stable operation, low noise, and extended service life with reduced maintenance requirements.

  2. Double Shaft Propeller Rotor – Optimized mixing chamber design with biaxial paddle rotors delivers superior mixing uniformity with a variation coefficient of less than 5%.

  3. Short Mixing Time – Only 30-90 seconds per batch, significantly improving production efficiency.

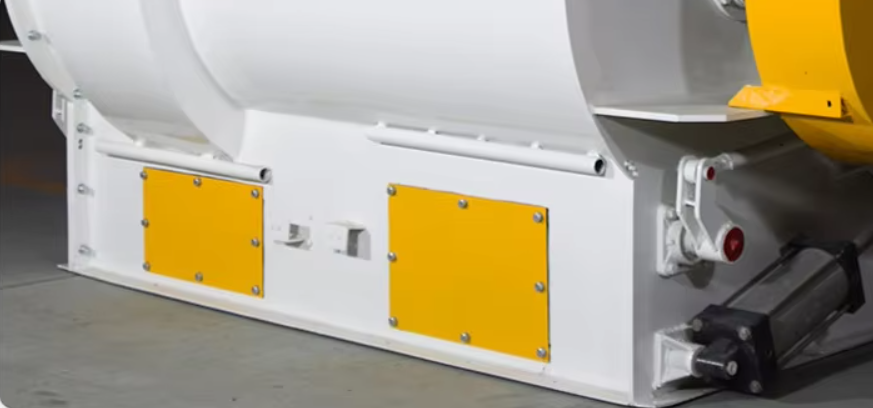

  4. Bottom Double Door Discharge – Full-length double doors with wide opening angle ensure rapid discharge with minimal residual material.

  5. Spray System – Top-mounted spraying system effectively improves liquid atomization and prevents material agglomeration during mixing.

  6. Excellent Sealing – Specially designed shaft end and door sealing structure ensures no leakage during operation.

  7. Versatile Material Handling – Capable of mixing powder, granular, flake, and lump materials across multiple industries.

Working Principle

The mixer utilizes two counter-rotating paddle shafts that create a fluidized mixing zone. Materials are lifted, folded, and thrown in a three-dimensional motion, achieving rapid and homogeneous blending. The top spray system allows simultaneous liquid addition for enhanced mixing efficiency. The bottom double doors open fully for instant discharge with minimal residual material.

Product Structure

  • Unique Structure – Stable operation, reliable quality, low noise, and long service life

  • Easy Installation & Maintenance – Simple design for quick setup and convenient upkeep

  • Various Spiral Belt Structures – Multiple configurations available for different material types

  • Strong Driving Force – Powerful motor ensures consistent mixing even with heavy loads

FAQ

Q1: What materials can this mixer handle?
A: Powder, granular, flake, and lump materials for feed, chemical, pharmaceutical, and food industries.

Q2: How long is the mixing time per batch?
A: Mixing time ranges from 30 to 90 seconds per batch, achieving a uniformity variation coefficient of less than 5%.

Q3: What is the batch capacity?
A: Available in 500kg, 1000kg, and 2000kg per batch models to suit different production scales.

Q4: Can it mix liquid ingredients?
A: Yes. The top-mounted spray system effectively atomizes liquids and prevents material agglomeration.

Q5: Does it have good sealing to prevent leakage?
A: Yes. Specially designed shaft end and door sealing structures ensure no leakage during operation.

Q6: What after-sales support do you provide?
A: On-site installation guidance, fast spare parts supply, and 24-hour technical support.

After-Sales Service & Support

  • On-Site Installation Guidance – Technical personnel available for foundation, installation, and commissioning

  • Fast Spare Parts Supply – Common wearing parts in stock; emergency delivery within 5 days

  • Free Trial Run – Complimentary testing before factory dispatch

  • 24-Hour Technical Support – Rapid response with photo/video troubleshooting
