Wood Chipper Price | Industrial Biomass Chipper Shredder for Sale | Bamboo Log Processing

Contact
On-Site Installation Guidance – Technical staff available to assist with installation and commissioning at your location.

Fast Spare Parts Supply – Sufficient inventory of common parts; emergency delivery within 5 days.

Free Trial Run – Complimentary machine testing before factory dispatch.

24-Hour Technical Support – After-sales team responds to any malfunction reports within 24 hours.

Product Overview

SY Series drum wood chipper is a high-efficiency and reliable industrial wood processing machine. It is designed to evenly cut logs, branches, bamboo, offcuts and other raw materials into specified woodchip sizes. It serves as an ideal solution for biomass energy production and wood processing industries.

Machine Structure

The SY Series wood chipper features a robust and well-engineered structure, consisting of the following main components:

  • Frame & Shell – Made of high-strength steel plate welding, providing excellent stability and vibration resistance for heavy-duty continuous operation.

  • Blade Roller (Rotor) – Equipped with fly blades that rotate at high speed for efficient cutting.

  • Upper & Lower Feed Rollers – Hydraulically driven; the upper roller can float up and down within a set range to accommodate different material thicknesses.

  • Conveyor Belt – Ensures smooth and consistent feeding.

  • Hydraulic System – Provides adjustable feeding pressure and overload protection.

Key Features

  1. Self-Adaptive Feeding – The upper feed roller floats under hydraulic control, automatically adjusting to different diameters and thicknesses of raw materials, ensuring stable and smooth cutting.

  2. Screen-Controlled Discharge – Cut materials are discharged through screen holes. Oversized particles are recirculated and cut again until they meet the required size, guaranteeing uniform final product dimensions.

  3. Durable Construction – Heavy-duty steel frame and housing ensure long-term reliability with minimal maintenance.

Application Fields

SY Series wood chipper is widely used in the following industries and scenarios:

  • Biomass Pellet Plants – Provides uniformly sized woodchips as raw material for the pelletizing process, serving as a key pre-processing unit.

  • Paper Mills – Processes logs into woodchips for cooking and pulping.

  • Panel Board Industry – Supplies qualified chips for particleboard and fibreboard production.

  • Orchards & Gardens – Handles pruned branches and tree trimmings for waste reduction and resource utilization.

  • Bamboo Processing – Suitable for slicing bamboo for bamboo products or bamboo pulp production.

  • Wood Processing Residues – Processes bark slabs, edge trimmings, waste veneer and other leftovers to improve material utilization.

Technical Parameters (SY Series)

Model Main Power (kW) Woodchip Size (mm) Capacity (t/h) Overall Dimension (mm)
SY215 45 30 – 50 3 – 5 2500 × 2000 × 1000
SY216 55 30 – 50 7 – 10 3300 × 2300 × 1350
SY218 110 30 – 50 12 – 18 3300 × 2500 × 1500

Note: Capacity may vary depending on raw material type, moisture content and feed size.

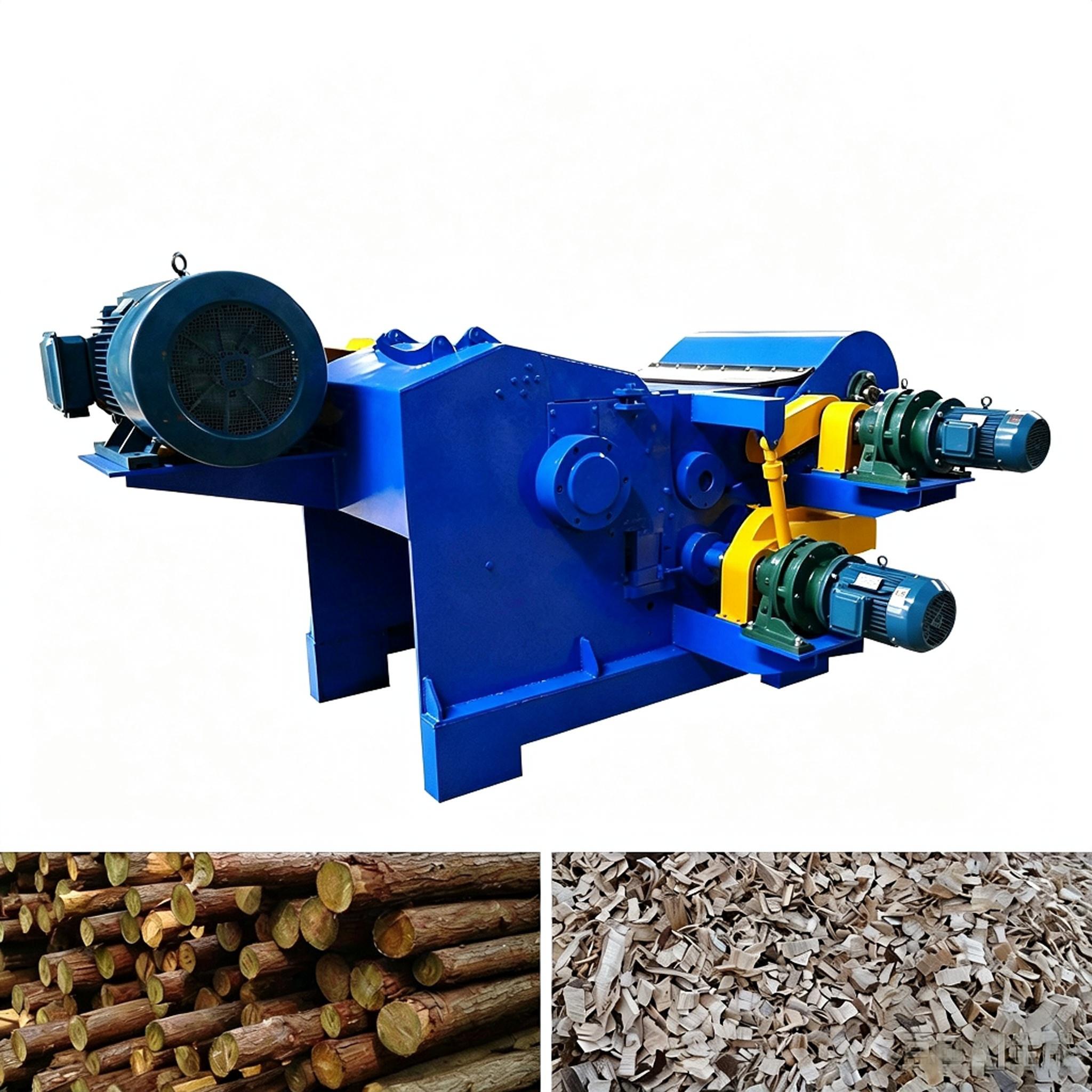

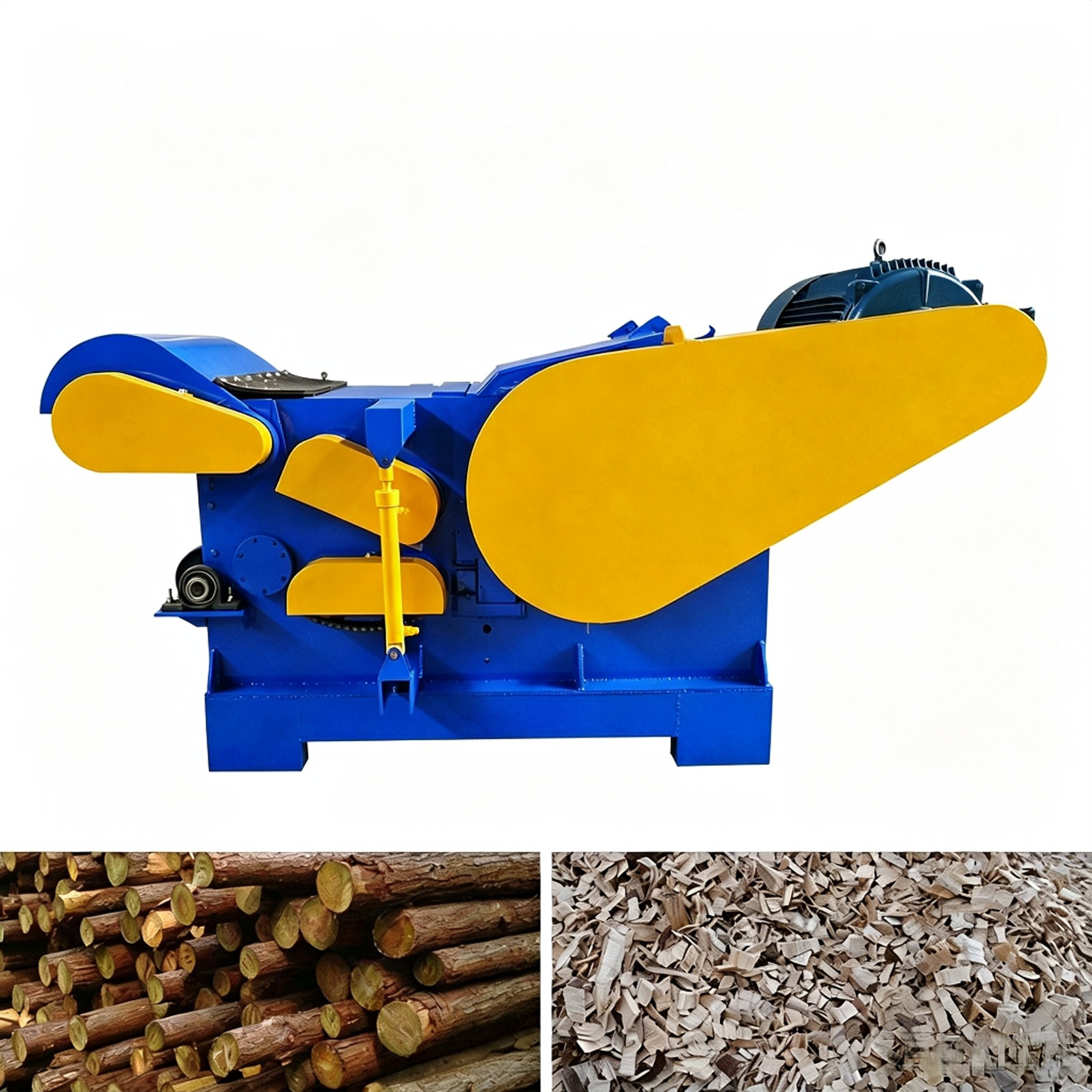

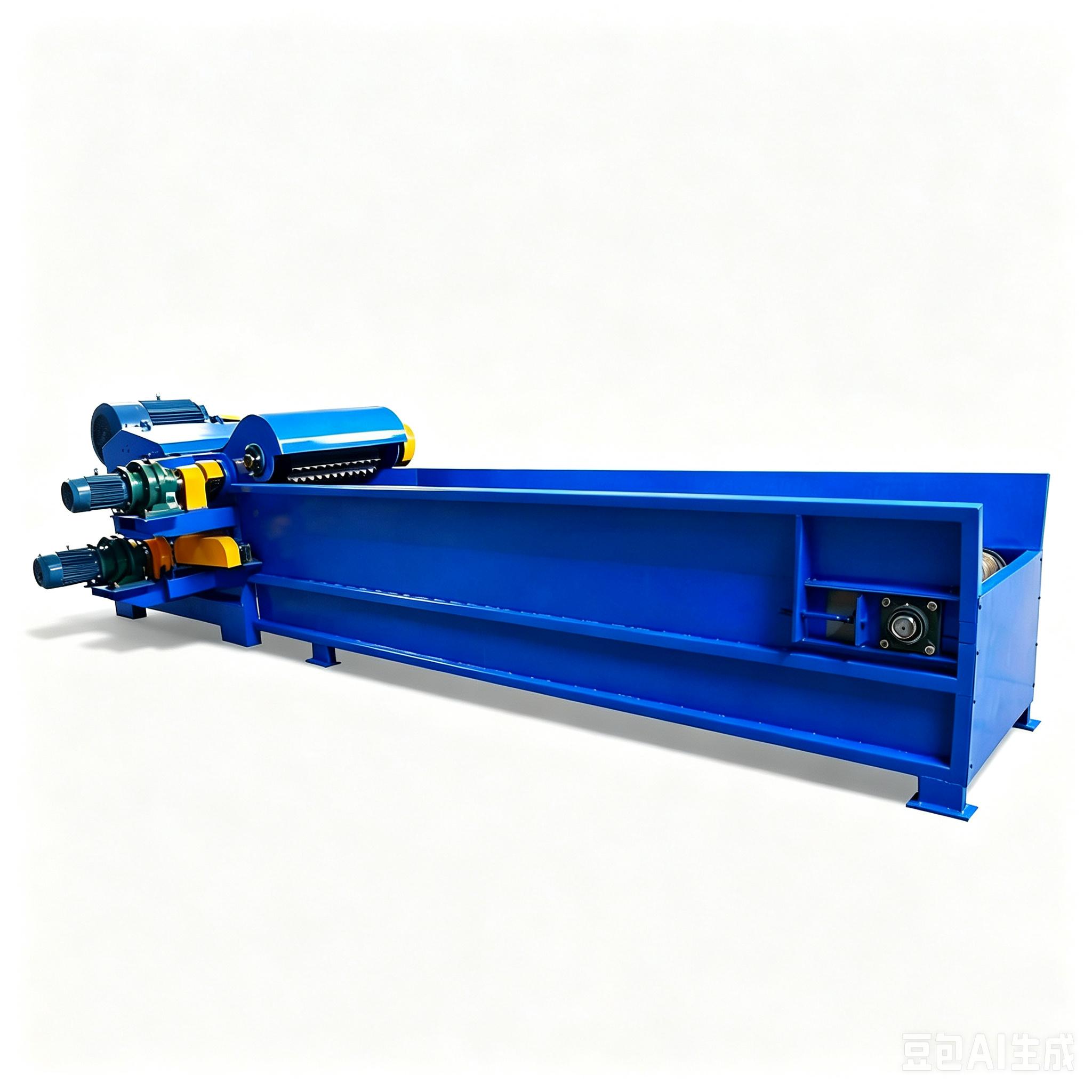

Drum Wood chipper machine
Type: Wood Chipping Machine
Power(kw): 45 – 110
Capacity(t/h): 3 – 18
Application: Use for orchard, garden, paper mill, particleboard factory, fibreboard factory,wood, widely used in the biomass pellet plant.

Wood chipper Structure:
1. The wood chipper consists of frame, blade roller, upper and lower feed roller, conveyor belt, hydraulic system and other parts.
2.Frame and shell are made of high strength steel plate welding, and there are fly blades installing on blade roller.


FAQ

Q1: What is the required feed size of raw materials? How large a log can this machine handle?
A: This machine can process logs, branches and bamboo within the feed opening dimensions. Feed opening size varies by model. Please provide your material specifications, and we will recommend the most suitable model for your needs.

Q2: Can the final output size be adjusted?
A: Yes. The final woodchip size is mainly controlled by the screen mesh. We can supply different screen sizes according to your production requirements to ensure the output meets your process standards.

Q3: Do you provide on-site installation assistance?
A: Yes. We can send technical personnel to your site to guide foundation construction, machine installation and commissioning, ensuring smooth startup of the equipment.

Q4: How can I get spare parts if I am in another country?
A: We keep sufficient stock of common wearing parts. In case of emergency, spare parts can be shipped within 5 days via international express or sea freight.

Q5: Can I test the machine before purchasing?
A: Yes. We offer free test runs for customers before the machine or production line leaves our factory, so you can verify the processing effect in advance.

Q6: What should I do if the machine breaks down after purchase?
A: Please take photos or videos of the issue and send them to our after-sales service team. We will respond with a solution within 24 hours to minimize your production downtime.
