Livestock / Cattle Feed Pellet Production Line – 3-4 T/H Turnkey Project for Cattle, Sheep & Camel Feed Manufacturing

Contact
1. 3-4T/H turnkey line** – Processes grass, corn, alfalfa into cattle/sheep/camel pellets with full grinding, mixing, pelletizing, and packaging.
2. Flexible output** – Supports both pellet and powder feed, semi/full-auto options for stable high-volume factory production.
3. Integrated system** – Includes cooler, crumbler, and packer; energy-saving, low-maintenance, ideal for ranches and cooperatives.
4. Cost-effective startup** – Delivers balanced nutrition pellets at low operatin

Livestock / Cattle Feed Pellet Production Line

This turnkey feed manufacturing system manufactures premium pellet and powder feed for cattle, sheep, camels and other livestock. It runs at a 3–4 tons per hour output and processes grass, corn, alfalfa and multiple forage raw materials. The full line fits commercial farms and feed manufacturers. Finished feed can be used on-site or sold commercially for stable investment returns.

Basic  Information

Parameter Specification
Project Name Livestock / Cattle Feed Pellet Turnkey Project
Production Capacity 3–4 Tons/Hour
Raw Materials Grass, Corn, Alfalfa, etc.
Pellet Types Cattle feed, Sheep feed, Camel feed
Product Forms Pellet feed and powder feed
Application Commercial farms, feed manufacturing plants, livestock operations

Production Line Process Flow

  1. Raw Material Receiving & Grinding Process Raw materials go through cleaning, filtering and fine grinding to reach uniform particle size for subsequent processing. Equipment Sequence: Raw Materials Receiving → Pulse Filter → Raw Materials Precleaner → Storage Bin → Grinding Machine → Pulse Filter Stones, metal scraps and dust impurities are fully removed. Even powder texture improves pellet forming and animal digestion efficiency.

  2. Mixing Process Ground raw materials are blended by customized formulas for balanced nutrition. Equipment Sequence: Bucket Elevator → Storage Bin → Mixer The mixer evenly distributes nutrients, vitamins and minerals to meet precise livestock dietary standards.

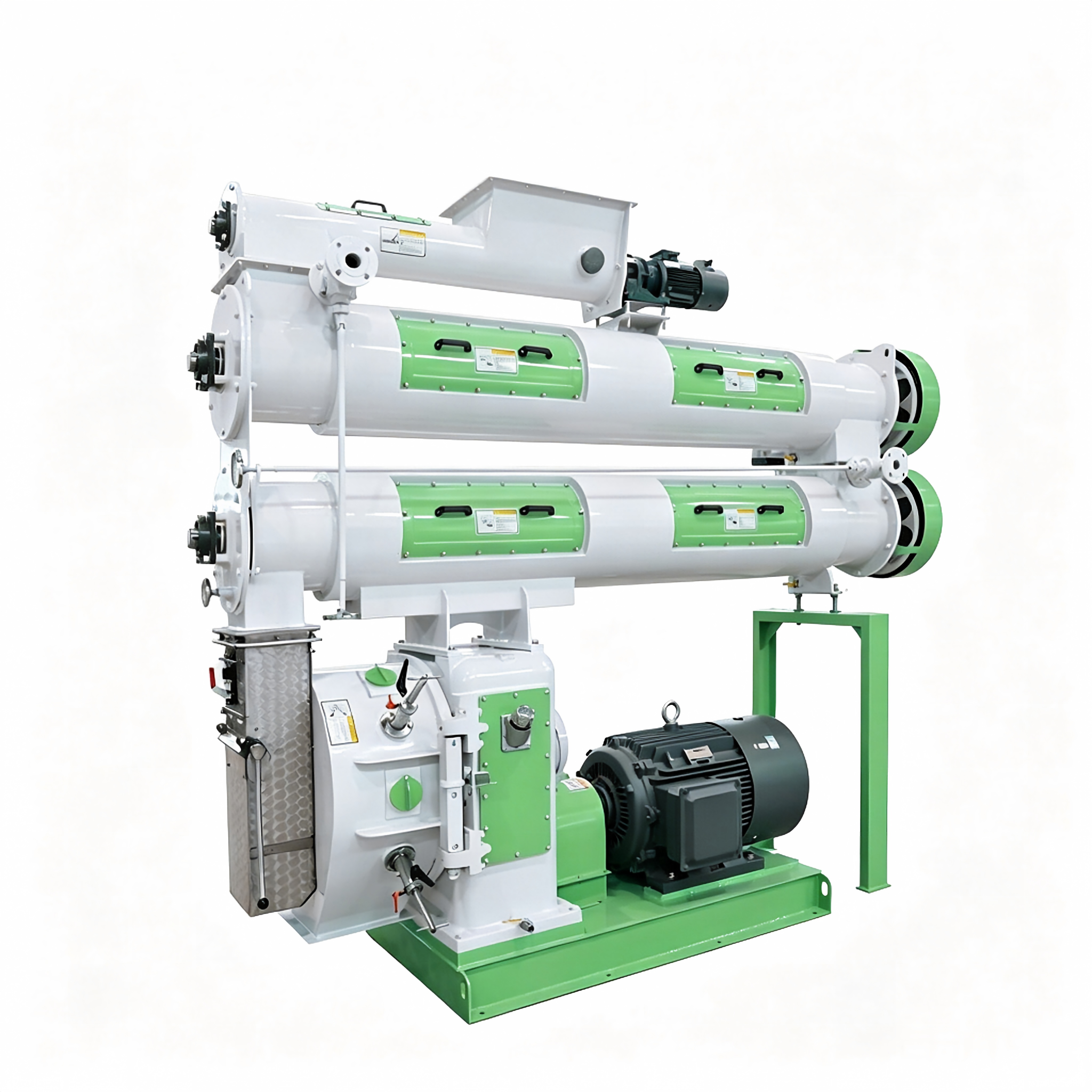

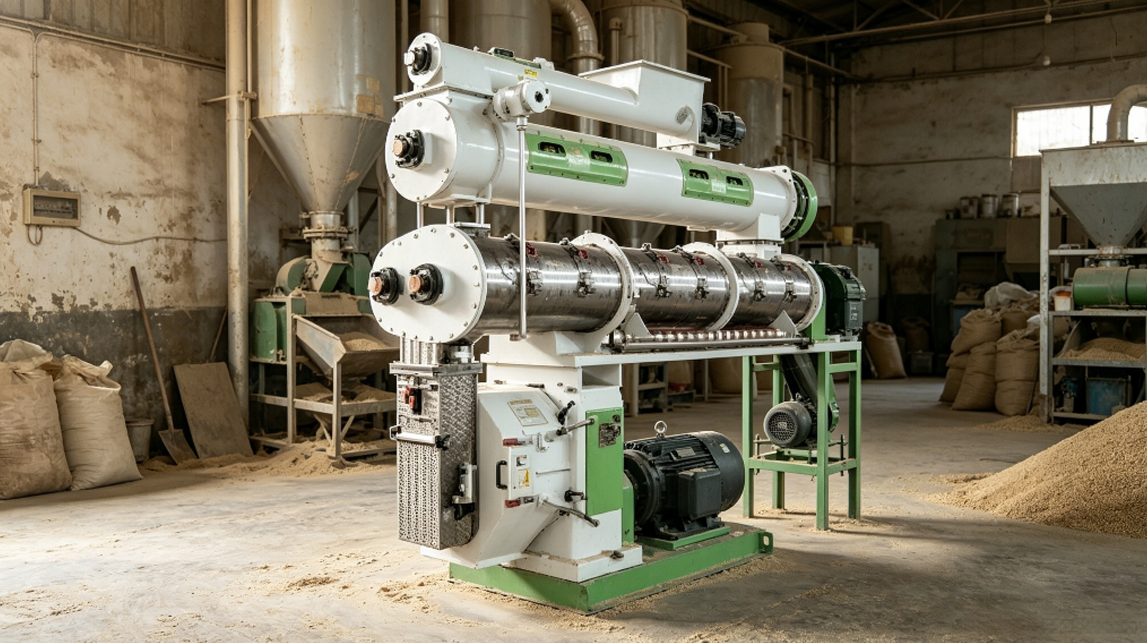

  3. Pelletizing Process Mixed powder is compressed and thermally treated into solid durable feed pellets. Equipment Sequence: Bucket Elevator → Storage Bin → Pellet Mill → Cooler → Fan → Cyclone → Double Rollers Crumbler Pellet Mill: High pressure compression forms dense uniform pellets for better digestion and less feeding waste. Cooler: Quickly lowers pellet temperature and moisture to extend storage life and stabilize texture. Fan & Cyclone: Circulate cooling air and collect floating dust. Double Rollers Crumbler: Crush oversized pellets into small sizes matching livestock of different ages.

  4. Packaging Process Finished pellets are screened, stored and auto-packed for delivery and sales. Equipment Sequence: Bucket Elevator → Rotary Screener → Storage Bin → Packaging Machine Rotary Screener: Separate broken fines to retain premium finished pellets only. Storage Bin: Temporary buffer storage before packing. Packaging Machine: Auto weighing, filling and sealing bags of multiple specifications for transport and retail.

Product Features & Core Advantages

  1. Multi-Type Feed Production Capacity The line produces both pellet feed and powder feed, compatible with cattle, sheep and camel breeding. It meets diversified market and farm production demands.
  2. Stable High Hourly Output 3–4 tons hourly stable throughput matches medium and large commercial livestock facilities, supporting long continuous running without performance drop.
  3. All-In-One Turnkey Solution Covers full workflow from raw material handling to finished bagging. Integrated matched equipment avoids separate sourcing and guarantees smooth linked production.
  4. Superior Uniform Pellet Quality Accurate grinding, full mixing, high-pressure pelletizing and efficient cooling jointly create hard low-fine pellets with consistent nutrition, boosting livestock growth and feed conversion ratio.
  5. Energy Saving & Low Operation Expense Optimized equipment layout and energy-efficient motors cut power consumption. Durable components lower maintenance frequency and long-term production cost.
  6. Simple Operation & Easy Maintenance Intuitive control panel requires minimal operator training. All core wearing parts are easy to access for cleaning, inspection and replacement.
Feature Core Customer Benefit
Dual pellet and powder feed output Serve various livestock breeding and market sales needs
3–4T/H stable hourly production Support medium-large scale continuous feed manufacturing
Complete full-process turnkey set No extra equipment matching work, smooth production line operation
High-hardness low-fine feed pellets Improve livestock digestion and reduce feed waste
Low energy consumption and long service life Cut daily power and spare part expenditure
User-friendly control and accessible parts Short training time, fast routine maintenance

Application

  1. Commercial breeding farms for cattle, sheep and camels Core feed production equipment to make self-use balanced livestock feed and cut external feed purchase cost.
  2. Specialized livestock feed manufacturing plants Mass-produce standardized feed pellets for wholesale and regional animal breeding market supply.
  3. Agricultural cooperatives and large pasture ranches Centralized feed processing for collective breeding groups and wide-range pasture feeding demands.
  4. New entrepreneurs entering animal feed production industry Full turnkey line with complete technical support for new feed factory startup.
  5. Government agricultural industrial development projects Standardized automated feed processing equipment for livestock industry upgrading programs.
