Rubber & Tire Steel Wire Separator – Tire Recycling Equipment

Contact
1. 100% separation rate, produces 1–15mm pure rubber granules and clean steel wire.

2. 1–6 t/h capacity, heavy-duty design for continuous industrial operation.

3. Multiple models available (18.5–55kW), low maintenance, high automation.

4. Core equipment for tire recycling lines, maximizes rubber and steel recovery value.

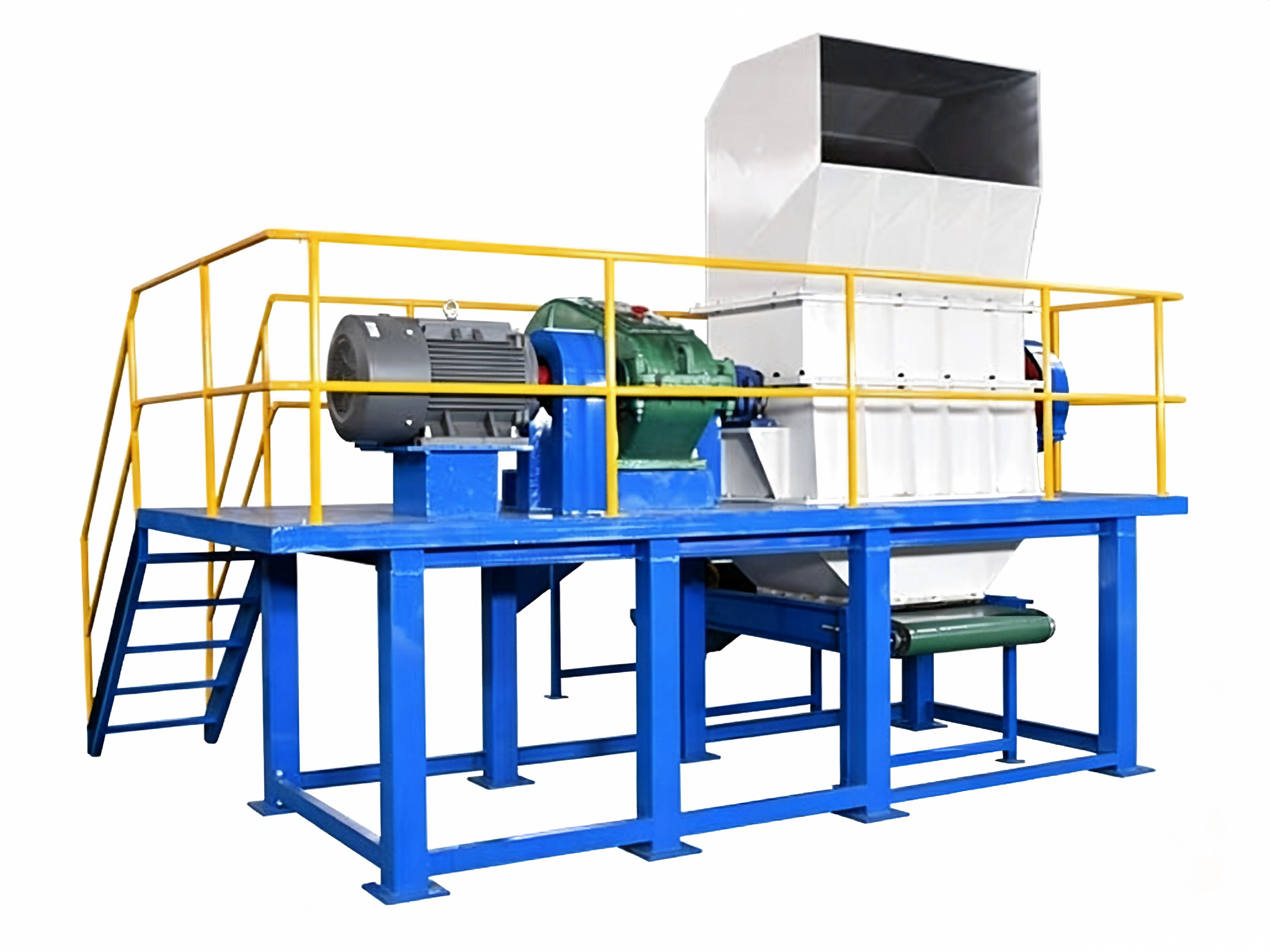

Rubber & Tire Steel Wire Separator – Tire Recycling Equipment

The Rubber & Tire Steel Wire Separator is a specialized equipment designed to separate rubber and steel wire from used tires. This separator is an essential component in the waste tire recycling process, enabling the production of pure rubber granules that can be used as raw materials for renewable rubber products.

Through recycling and processing of waste tires, rubber granules are produced, which can be used as raw materials for renewable rubber products. The tire wire separator is an important part of the waste tire recycling process – it separates the steel wire from the tire and produces full rubber granules from waste tires, ensuring the quality of the final rubber product.

The compact design features a heavy-duty rack, hook, knife, and cylinder movement system, easily meeting production process requirements. Multiple models are available with different separating box diameters and knife configurations for various material requirements.

Product Features

  1. Specialized Rubber-Wire Separation – The separator is a special equipment to separate rubber and wire from used tires, ensuring high purity rubber granule output.

  2. Heavy-Duty Construction – Compact design with heavy-duty rack, hook, knife, and cylinder movement system for reliable continuous operation.

  3. High Separation Efficiency – Achieves 100% separation factor, producing pure rubber granules free from steel wire contamination.

  4. Adjustable Rubber Size – Produces rubber granules in the range of 1-15 mm, suitable for various downstream applications.

  5. Flexible Knife Roller Options – For different material properties, the knife roller can be flexibly chosen to enhance the crushing effect. Different knife rollers can be used for different material requirements.

  6. Performance Optimization – The correct choice of knife roller can greatly improve the design performance and production efficiency.

  7. Wide Application – Used for various waste tires, rubber and steel wire separation.

Technical Parameters

Model Separating Box Diameter (mm) Quantity of Knife Dish Knife Dish Diameter (mm) Power (kW) Reducer Style Separation Factor (%) Rubber Size (mm) Weight (kg) Dimensions (mm)
100 965×585 8 450 18.5 SY224-31.5-1 100 1-15 2600 3400×2000×2700
120 1195×585 10 450 22 SY250-31.5-1 100 1-15 2750 3550×2150×2700
150 1540×585 13 450 30 SY280-31.5-1 100 1-15 2980 3780×2320×2700

Related Products

Rubber & Tire Steel Wire Separator

Parameter Specification
Power 30 – 55 kW
Capacity 1 – 6 t/h
Application Various waste tires, rubber and steel wire separation

Product Features & Benefits

Feature Benefit
Specialized rubber-wire separation High purity rubber granules output
100% separation factor No steel wire contamination in final product
1-15 mm rubber size range Suitable for various downstream applications
Heavy-duty construction Reliable continuous operation
Flexible knife roller options Optimized performance for different materials
Compact design Easy installation and integration into recycling lines
Multiple models available Scalable for different production capacities

Application

  1. Flexible Knife Roller Selection – For different material properties, the flexibility to choose the equipment knife roller will enhance the crushing effect. Different knife rollers can be used for different material requirements.

  2. Performance & Efficiency – The correct choice of knife roller can greatly improve the design performance and production efficiency.

  3. Material Applications – Used for various waste tires, rubber and steel wire separation in tire recycling plants, rubber recycling facilities, and waste processing operations.

Flowchart

text

DEBEADED TIRE PIECES
         │
         ▼
RUBBER & TIRE STEEL WIRE SEPARATOR
(Separating rubber granules from steel wire)
         │
         ▼
MAGNETIC SEPARATOR
(Removing remaining steel wire particles)
         │
         ▼
PURE RUBBER GRANULES
(1-15 mm, ready for renewable rubber products)
         │
         ▼
STEEL WIRE
(Recovered for scrap metal recycling)

Related Equipment in Tire Recycling Line

Equipment Function
Hook Debeader Extracting steel wire from tire bead
Tire Shredder Primary and secondary shredding of tires
Rubber & Tire Steel Wire Separator Separating rubber and steel wire
Magnetic Separator Removing remaining steel particles
Rubber Granulator Fine grinding of rubber granules
Vibrating Screener Classifying rubber granules by size

Recycling Applications

End Product Application
Rubber Granules (1-15 mm) Rubber flooring, mats, insulation materials
Rubber Powder Asphalt modification, sealants, coatings
Steel Wire Scrap metal recycling, steel production
Rubber Crumb Sports surfaces, playgrounds, automotive parts
