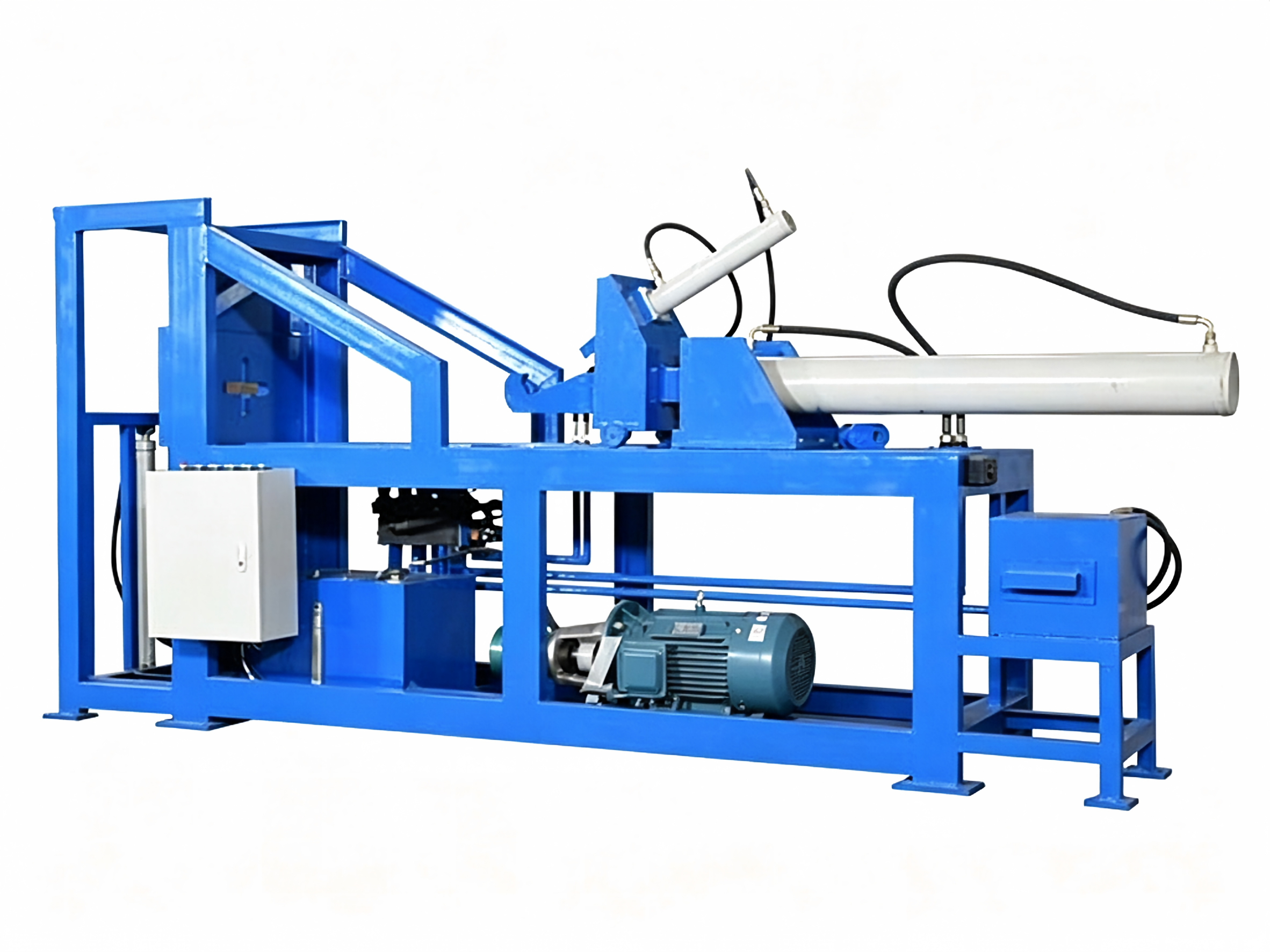

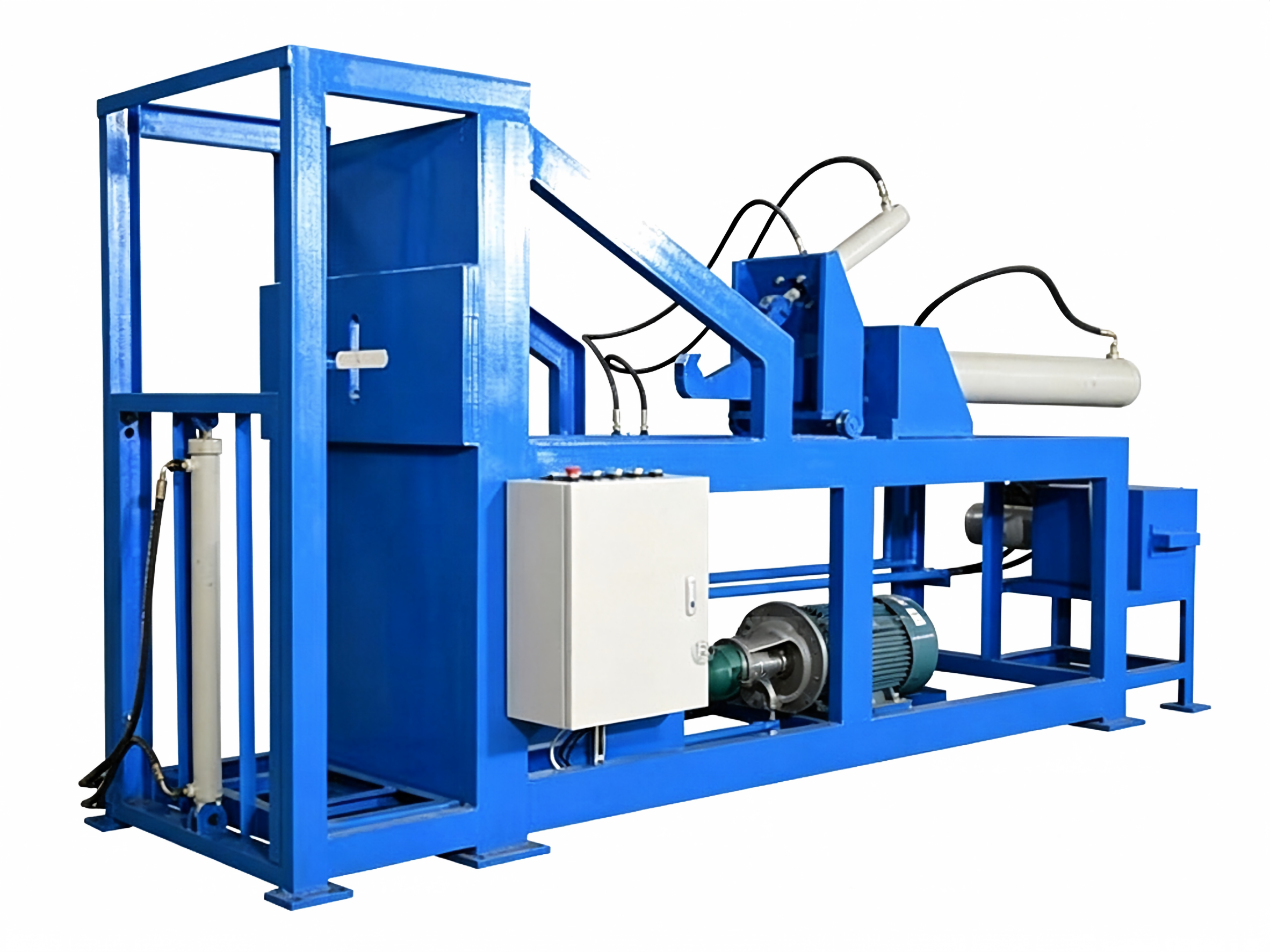

Waste Rubber Tyre Recycle Machine Tire Debeader Steel Wire Hook Puller

Contact
Dual shaft shredder processes plastic, wood, paper, light metal, appliances, rubber, and textiles, 200–4000 kg/h.
Heavy-duty industrial shredder with alloy steel blades, PLC control, low noise, and high torque for tough materials.
SY Series multi-purpose shredder with customizable blade configuration and overload protection for continuous operation.
Versatile shredding solution for waste recycling plants, handling hard plastic blocks to tires and e-waste.

Dual Shaft Shredder – Multi-Purpose Industrial Shredding Equipment

The SY Series Dual Shaft Shredder is a versatile industrial shredding machine designed for processing a wide range of materials including plastic, wood, paper, light metal, household appliances, rubber, and textile products. With heavy-duty construction and powerful shredding capability, this equipment is the ideal solution for waste recycling plants, material recovery facilities, and industrial processing operations.

The dual shaft design with alloy steel blades delivers high torque, low speed, and efficient shredding performance, handling everything from hard plastic blocks and metal scraps to bulky household appliances and rubber tires.

Applicable Materials

Category Specific Materials
Plastic PP/PE packing film, agricultural film, woven bags, drinking bottles, plastic pipes, plastic boards, plastic pallets, plastic lumps, plastic crates, hard plastic blocks (PP, PE, ABS, fiber glass, etc.)
Wood Wood timber, tree roots, wood pallets
Paper Newspapers, magazines, books, carton boxes
Light Metal Aluminum cans, aluminum scraps, aluminum blocks
Household Appliances TV sets, refrigerator bodies, plastic chairs, air conditioner bodies, washing machine bodies
Rubber Tires (car, truck, OTR tires)
Textile Products Cloth, fiber, carpet products

Working Principle

The dual shaft shredder operates on a low-speed, high-torque shearing principle. Two counter-rotating shafts equipped with interlocking alloy steel blades pull materials into the cutting chamber. The blades shear, tear, and crush materials against each other and the fixed counter-knives, reducing them to uniform particle sizes. The hydraulic or mechanical pusher ensures consistent material feeding, while the PLC control system monitors and adjusts operation for optimal performance and overload protection.

Product Features

Feature Description
Dual Shaft Design Two heavy-duty shafts with interlocking alloy steel blades provide high torque and efficient shredding for tough materials
Versatile Material Processing Capable of shredding plastic, wood, paper, light metal, household appliances, rubber tires, and textile products
Heavy-Duty Construction Built with robust frame and components for continuous industrial operation
Hard Plastic Specialization Especially suitable for hard plastic blocks including PP, PE, ABS, and fiber glass blocks
Low Speed, High Torque Delivers powerful shredding with low noise and minimal dust emission
PLC Automatic Control Microcomputer control with start, stop, reverse, and overload protection functions
Long Service Life Alloy steel blades with excellent wear resistance and durability
Customizable Blade Configuration Blade thickness and arrangement can be customized for different material requirements

Technical Parameters (Typical Models)

Model SY-600 SY-800 SY-1000 SY-1200
Shaft Diameter (mm) 180 220 260 300
Blade Diameter (mm) 260 300 360 400
Blade Thickness (mm) 20 30 40 50
Main Motor Power (kW) 11–15 22–30 37–45 55–75
Processing Capacity (kg/h) 200–500 500–1000 1000–2000 2000–4000
Machine Weight (kg) 2000 3500 5500 8500
Overall Dimension (mm) 2200×1200×1800 2800×1400×2100 3300×1600×2400 3800×1800×2700

Flowchart

WASTE MATERIALS
(Plastic, Wood, Paper, Light Metal, Appliances, Rubber, Textiles)
         │
         ▼
   CONVEYOR FEEDING
(Manual or automatic feeding system)
         │
         ▼
DUAL SHAFT SHREDDER (SY Series)
(High torque, low speed shredding)
         │
         ▼
   SCREENING / CLASSIFYING
(Size classification of shredded materials)
         │
         ▼
   MAGNETIC SEPARATION
(For metal removal from non-metal materials)
         │
         ▼
   FINISHED SHREDDED PRODUCT
(Ready for recycling, reprocessing or disposal)

Advantages at a Glance

Feature Core Customer Benefit
PLC automatic control Overload protection, reverse function, and easy operation
Low speed, high torque Low noise, minimal dust, energy-efficient shredding
Heavy-duty alloy steel blades Extended service life and reduced replacement frequency
Versatile material processing One machine handles multiple waste types, reducing equipment investment
Customizable blade configuration Tailored to specific material requirements for optimal performance
Industrial-grade construction Reliable 24/7 operation with low maintenance downtime

Application

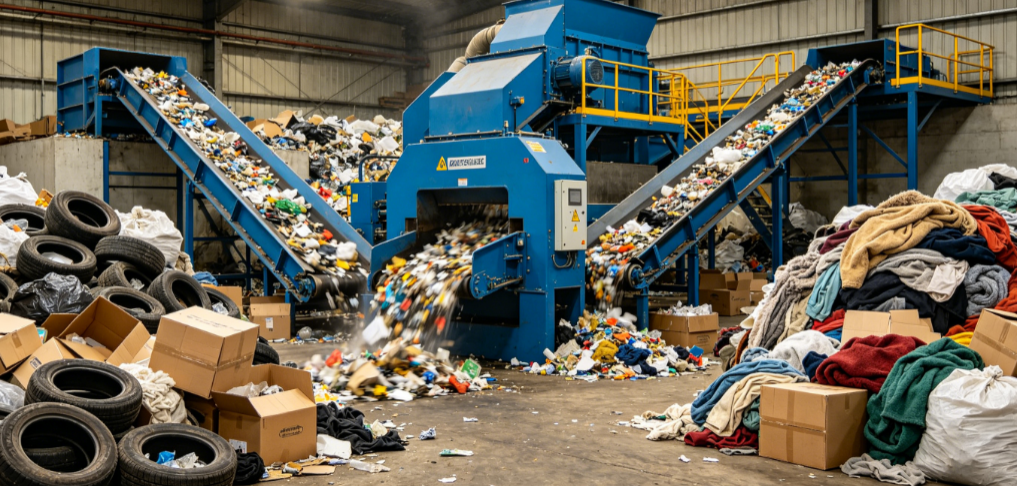

  1. Waste Recycling Plants
    Primary shredding equipment for mixed waste streams including plastic, wood, paper, and light metal.

  2. Material Recovery Facilities (MRF)
    Volume reduction and sorting preparation for various recyclable materials.

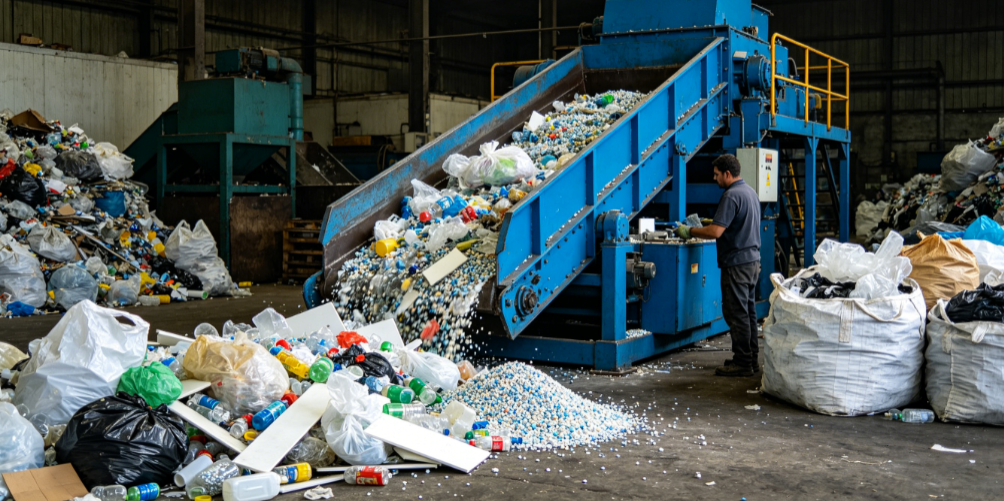

  3. Plastic Recycling Centers
    Size reduction of hard plastic blocks, lumps, pipes, boards, and pallets for reprocessing.

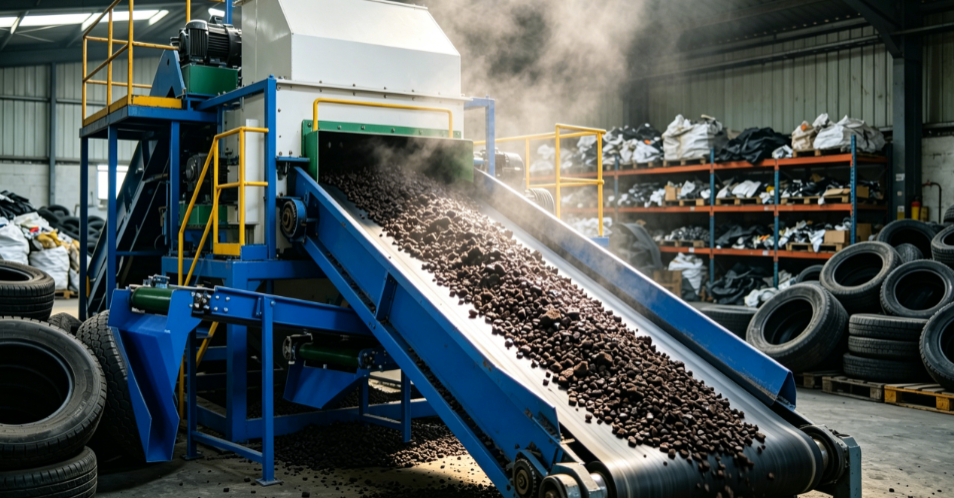

  4. Tire Recycling Facilities
    Pre-shredding of car, truck, and OTR tires before secondary granulation.

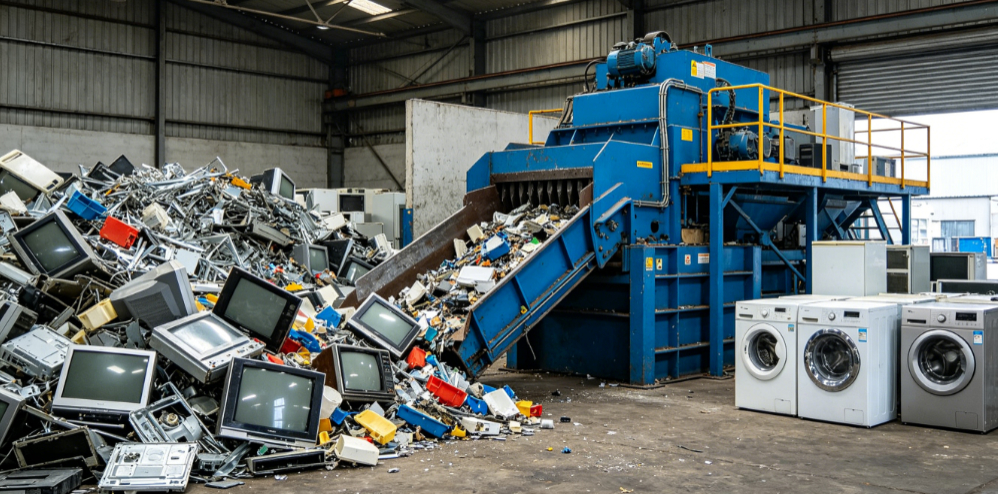

  5. E-Waste & Appliance Recycling
    Dismantling and shredding of household appliances for component separation.

  6. Wood Processing & Biomass Preparation
    Shredding of timber, pallets, and tree roots for biomass fuel or wood recycling.

  7. Textile Recycling Operations
    Processing of cloth, fiber, and carpet waste for downcycling or waste-to-fuel applications.

Matching Related Equipment

Equipment Function
Belt Conveyor Automated feeding of materials to the shredder
Magnetic Separator Removal of ferrous metals from shredded output
Trommel Screen / Vibrating Screen Size classification of shredded materials
Granulator / Crusher Further size reduction of shredded materials into finer particles
Dust Collection System Central dust control for environmental compliance
Hydraulic Pusher Forced feeding of bulky or irregular materials
