1.5-2TPH Fish Feed Making Machine Aquatic Feed Pellet Mill for Fish Farming
Turnkey feed manufacturing solution with automated batching, conditioning, pelleting, cooling, and packaging systems.
Medium-scale feed production line with 37-45kW motor, adjustable 2-12mm pellet size, and modular maintenance design.
Cost-effective 2-4 TPH feed line processing grains and by-products for commercial farms and feed distributors.
2-4 TPH Cattle & Poultry Feed Production Line – Complete Turnkey Solution
Our 2-4 Tons/Hour Animal Feed Production Line is a complete, turnkey solution designed for medium-scale commercial feed manufacturing. This production line is specifically engineered to produce high-quality pellet feed for cattle, poultry, pigs, and aquatic species, making it the ideal choice for farms, cooperatives, and regional feed distributors in developing agricultural markets.

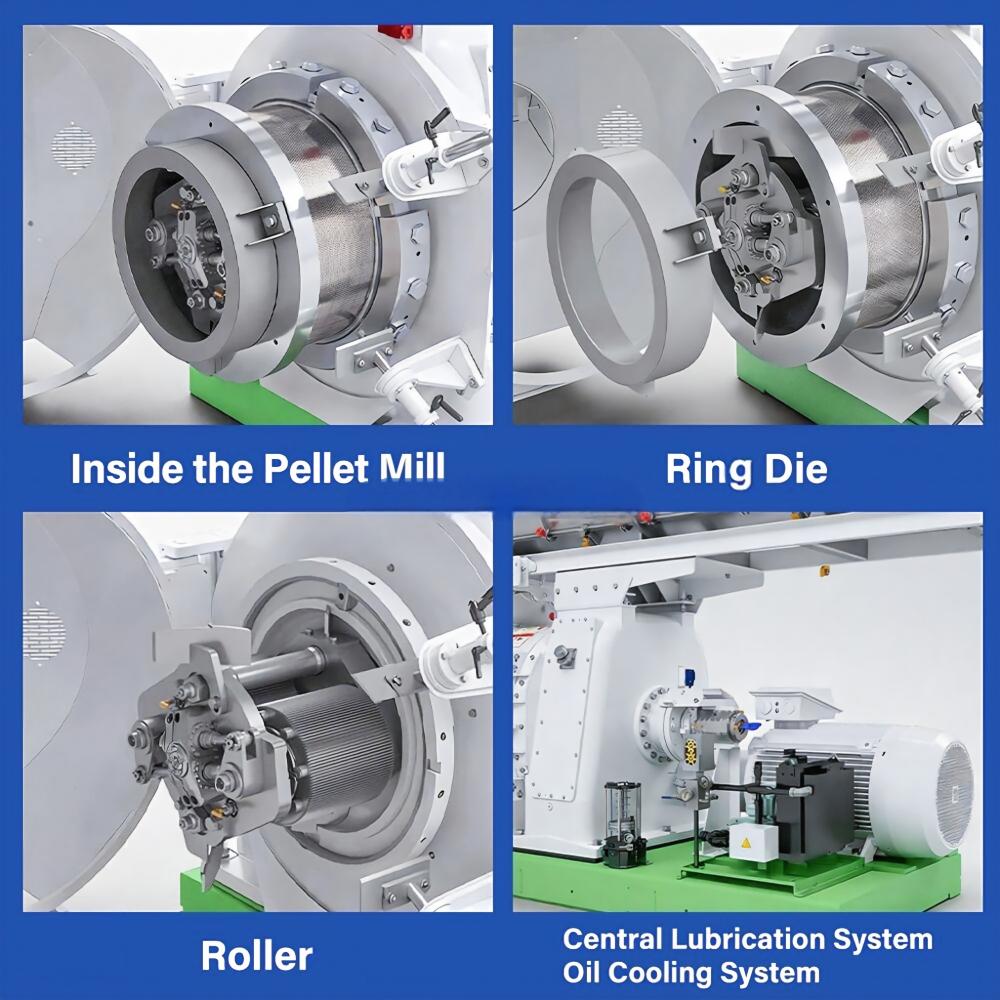

At the heart of this line is a ring die pellet mill, a robust and energy-efficient machine that delivers consistent output with minimal maintenance. The entire system is fully automated, easy to operate, and built to withstand continuous production demands.
Key Applications: Livestock Feed, Poultry Feed, Cattle Feed, Pig Feed, Aquatic Feed
Technical Specifications
| Model | SYLH 320 | SYLH 350 | SYLH 400 | SYLH 420 | SYLH 508 | SYLH 678 | SYLH 768 |
|---|---|---|---|---|---|---|---|
| Main Motor Power (kW) | 37/45 | 55 | 75/90 | 90/110 | 132/160 | 185/200 | 280/315 |
| Feeder Motor Power (kW) | 1.1 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 |
| Conditioner Motor Power (kW) | 2.2 | 3 | 5.5 | 5.5 | 7.5 | 11 | 15 |
| Ring Die Inner Diameter (mm) | 320 | 350 | 400 | 420 | 508 | 678 | 768 |
| Finished Pellet Size (mm) | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| Production Capacity (t/h) | 2–4 | 3–6 | 4–11 | 5–12 | 6–20 | 8–25 | 15–28 |

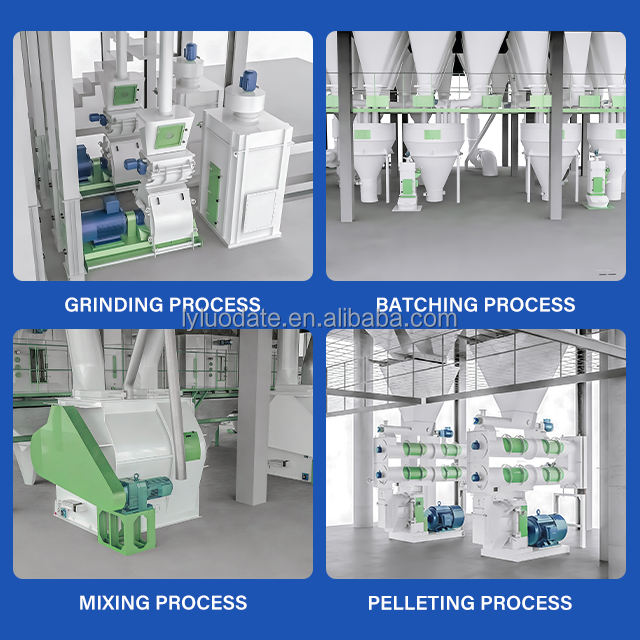

Production Workflow
Our complete production line follows a systematic process to ensure high-quality output:
| Step | Process | Description |
|---|---|---|
| 1 | Raw Material Receiving | Materials are fed via screw conveyor / bucket elevator |
| 2 | Cleaning & Magnetic Separation | Remove impurities and ferrous contaminants |
| 3 | Grinding | Hammer mill crushes materials to optimal particle size |
| 4 | Batching & Mixing | Computer-controlled batching system ensures precise formulation |
| 5 | Conditioning | Steam conditioning improves pellet binding and durability |
| 6 | Pelleting | Ring die pellet mill compresses powder into solid pellets |
| 7 | Cooling | Counterflow cooler reduces temperature and moisture |
| 8 | Screening | Vibrating screen removes fines for recycling |
| 9 | Packaging | Automatic weighing and bagging system (20-50 kg/bag) |
Product Superiority
| Feature | Description |
|---|---|
| High & Consistent Output | Designed for non-stop, large-scale production, delivering uniform feed pellets reliably to meet high-volume demands. The ring die pellet mill produces 2-4 tons per hour with stable performance. |
| Fully Automated Operation | Integrated computer-controlled batching system ensures accurate formula execution and end-to-end automation, minimizing manual error and labor cost. |
| Quick Modular Maintenance | Key components feature accessible modular design, allowing fast replacement to significantly reduce downtime during service. |
| Multi-Raw Material Capability | Capable of processing various grains and by-products while maintaining pellet integrity, enabling flexible feed formulations using locally available ingredients. |
| Energy Efficient | Optimized motor configuration (37-45kW main power) delivers maximum output with minimal energy consumption, reducing operational costs. |
| Durable & Long-Lasting | Built with high-quality materials and anti-corrosion treatment, suitable for tropical climates and harsh operating conditions. |
Applied Range
Designed for versatility, our feed production line easily creates customized pellets for:
| Animal Type | Recommended Pellet Size | Application |
|---|---|---|
| Poultry (Broilers, Layers) | 2 – 4 mm | Starter, grower, finisher formulas |
| Cattle / Livestock | 6 – 10 mm | Ruminant feed with fiber structure |
| Pigs | 3 – 5 mm | Grower, finisher, sow formulas |
| Sheep / Goats | 6 – 8 mm | Ruminant pellet feed |
| Aquatic (Fish) | 2 – 6 mm | Floating or sinking pellets (with extruder option) |
Switch between formulas and adjust pellet sizes to meet the specific needs of different animals and growth stages. Robust, efficient, and built to simplify your production—all while ensuring consistent, high-quality output.
Advantages at a Glance
| Feature | Core Customer Benefit |
|---|---|
| 2-4 TPH stable output | Meet medium-scale commercial production demands reliably |
| Fully automated control | Minimize labor cost and human error |
| Modular maintenance design | Reduce downtime with quick component replacement |
| Versatile raw material processing | Use local ingredients for flexible, cost-effective formulations |
| Energy-efficient 37-45kW motor | Lower daily operating costs |
| Durable anti-corrosion construction | Long service life in tropical and harsh environments |
| Adjustable 2-12mm pellet size | One line serves multiple animal types and growth stages |
Application
-
Medium-Scale Commercial Feed Mills
Ideal for regional feed manufacturers supplying poultry, livestock, and aquaculture markets with consistent high-quality pellet feed. -
Agricultural Cooperatives
Enable farmer cooperatives to produce their own feed, reducing dependency on external suppliers and lowering overall feed costs. -
Large Livestock & Poultry Farms
On-site feed production for integrated farming operations, allowing precise formula control and immediate availability. -
Developing Agricultural Markets
Turnkey solution designed for emerging markets, featuring robust construction, simple operation, and easy maintenance.
Matching Related Equipment
| Equipment | Function |
|---|---|
| Hammer Mill / Crusher | Raw material grinding to optimal particle size |
| Feed Mixer | Uniform blending of ingredients and additives |
| Screw Conveyor / Bucket Elevator | Automated material transfer between processing stages |
| Steam Boiler / Conditioner | Moisture and heat conditioning for improved pellet quality |
| Counterflow Cooler | Cooling and drying pellets after extrusion |
| Vibrating Screener | Size classification and fines removal |
| Automatic Packaging System | Weighing, bagging (20-50 kg), and sealing |
FAQ
Q1: What is the production capacity of this feed line?
A: The line delivers a stable output of 2 to 4 tons per hour, ideal for medium-scale commercial feed manufacturing.
Q2: What raw materials can be processed?
A: It processes various grains (corn, wheat), soybean meal, straw, and agricultural by-products, allowing flexible formulations using locally available ingredients.
Q3: What pellet sizes can be produced?
A: The pellet size is adjustable from 2mm to 12mm, accommodating poultry (2-4mm), pigs (3-5mm), cattle (6-10mm), and aquatic species (2-6mm).
Q4: Is the production line fully automated?
A: Yes. The system features computer-controlled batching and end-to-end automation, minimizing manual error and labor costs.
