1-5 Ton/h Wood Pellet Machine China Good Quality Industrial Biomass Wood Pellet Mill High Capacity Wood Pellet Production Line
With capacities ranging from 0.1 to 3 tons per hour, it serves small to medium-scale wood pellet manufacturers and biomass fuel producers.

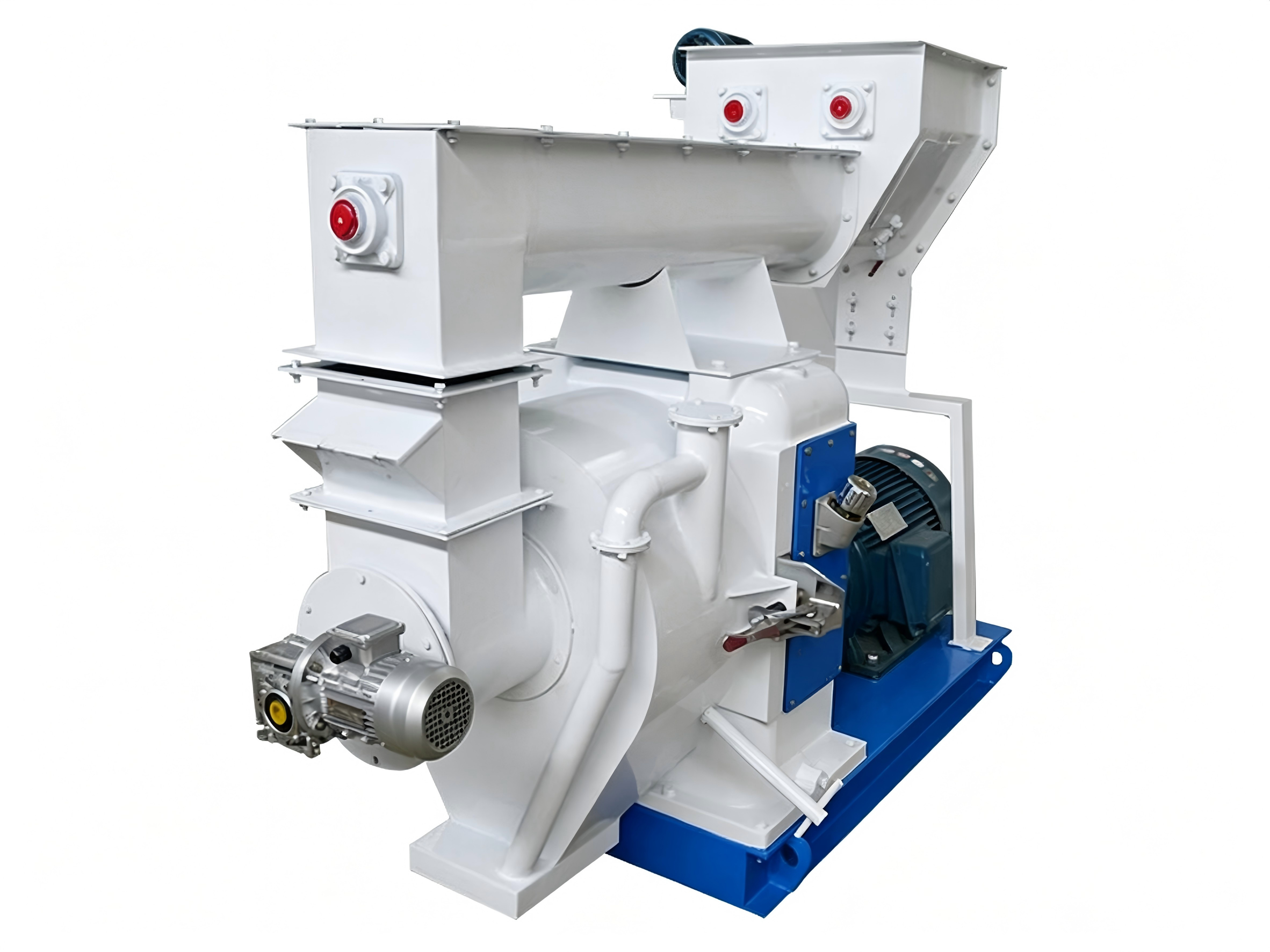

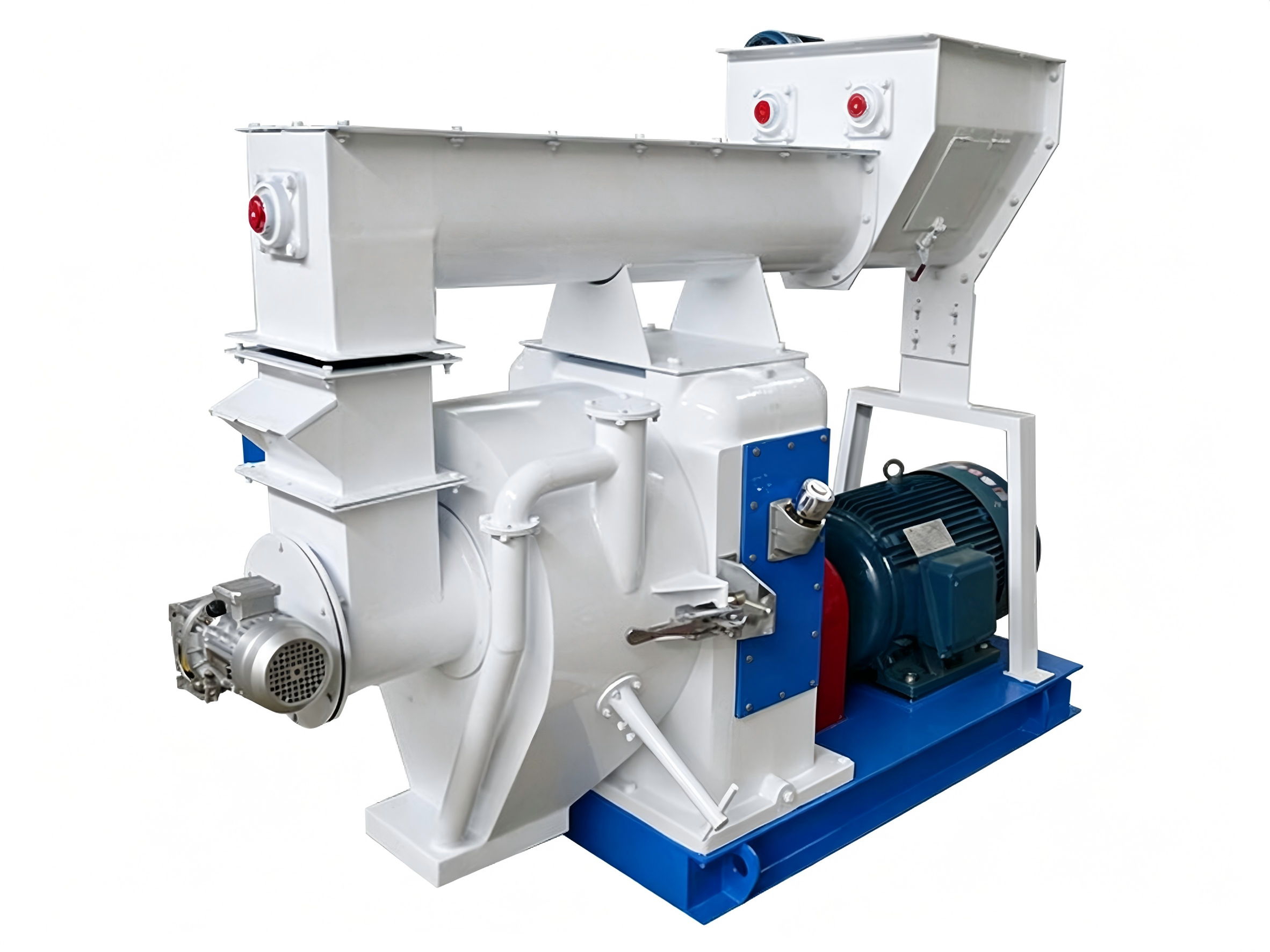

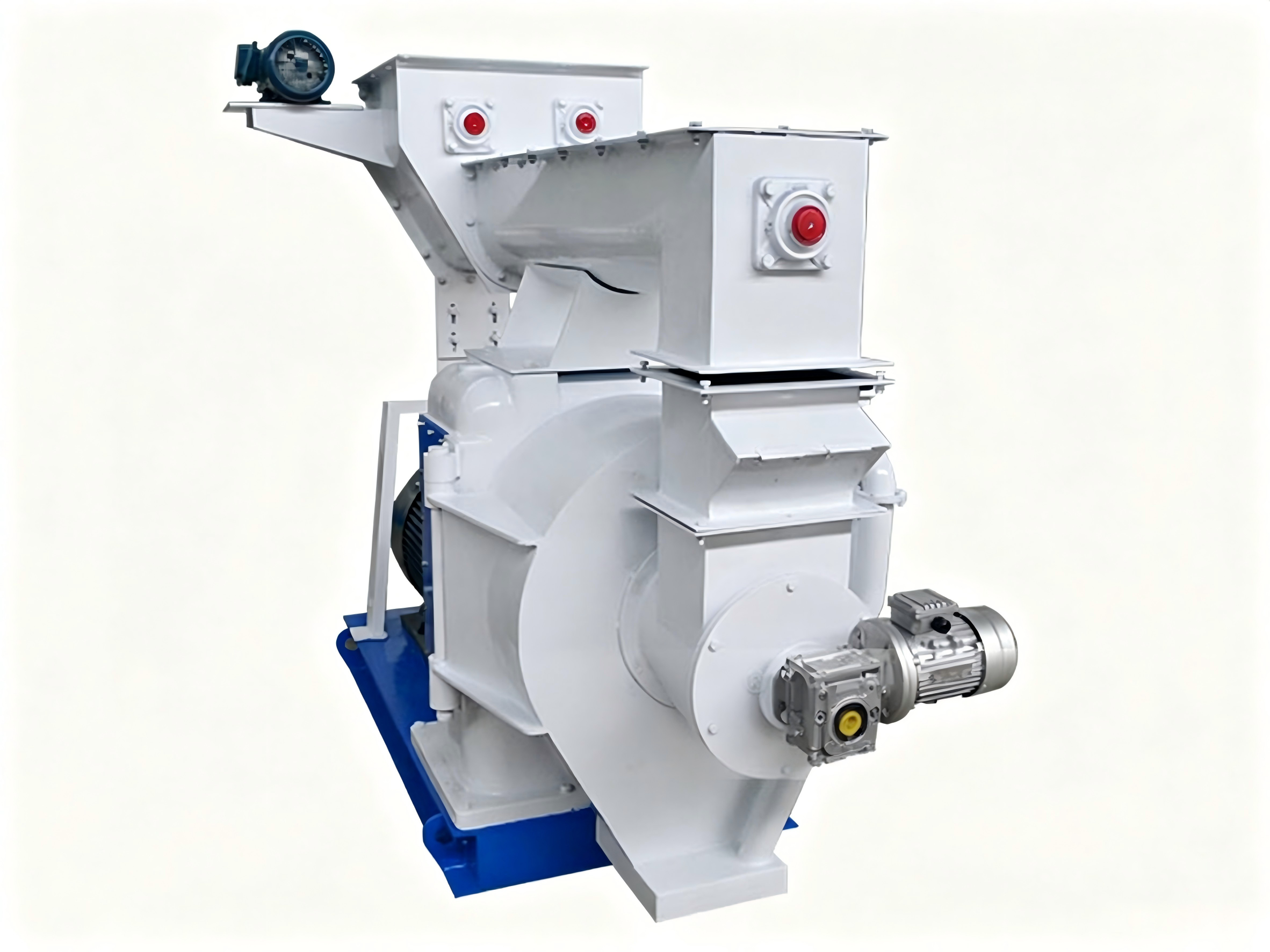

SYLH Series Wood Chips Pellet Mill – Product Introduction
1. Equipment Overview
The SYLH series wood chips pellet mill is a heavy-duty granulation machine designed for the production of biomass fuel pellets from various agricultural and forestry residues. With capacities ranging from 0.1 to 3 tons per hour, it serves small to medium-scale wood pellet manufacturers and biomass fuel producers.
This machine transforms waste biomass into high-density, high-calorific fuel pellets, offering a sustainable energy solution for industrial and residential applications.
2. Technical Parameters
| Model | Power (kW) | Feeder Power (kW) | Forced Feeding Power (kW) | Ring Die I.D. (mm) | Pellet Size (mm) | Capacity (t/h) | Dimension (mm) |
| SYLH 250 | 22 | 0.75 | 0.55 | 250 | 6 – 12 | 0.1 – 0.2 | 1420*1200*1400 |
| SYLH 320 | 37 / 45 | 0.75 | 0.55 | 320 | 6 – 12 | 0.3 – 0.5 | 2200*1000*1500 |
| SYLH 350 | 55 | 1.1 | 0.55 | 350 | 6 – 12 | 0.5 – 0.8 | 2500*1100*1600 |
| SYLH 400 | 75 / 90 | 1.5 | 0.75 | 400 | 6 – 12 | 0.8 – 1.5 | 2700*1150*1700 |
| SYLH 420 | 90 / 110 | 1.5 | 0.75 | 420 | 6 – 12 | 1.5 – 2.0 | 2800*1150*1730 |
| SYLH 508 | 132 / 160 | 1.5 | 0.75 | 508 | 6 – 12 | 2.0 – 3.0 |
3000*1260*1860 |
3. Key Features
| Feature | Benefit |
|---|---|
| Versatile raw material processing | Handles rice husk, straw, cotton stalk, wood chips, palm shell, sunflower, olive residue, bagasse, and more |
| High-precision gearbox main drive | Superior efficiency, stable operation, lower maintenance than belt systems |
| Frequency conversion feeder | Speed-adjustable for uniform material flow, with overload protection and strong magnetic safety device |
| Interchangeable ring dies (6–12 mm) | Flexible pellet size selection to meet different market demands |
| High output, low noise | Efficient production with comfortable working environment |
| Imported bearings and standard parts | Reliable performance and extended service life |
4. Application
The SYLH series is widely used in wood pellet production lines for large, medium and small manufacturers to produce high-quality biomass fuel pellets for commercial sale.
Processable raw materials:
-
Agricultural residues: rice husk, straw, cotton stalk, bagasse, sunflower husk, olive residue
-
Forestry residues: wood chips, sawdust, tree branches
-
Other biomass: palm shell, peanut shell, coffee husk
5. Applications of Finished Pellets
-
Industrial boiler fuel
-
Residential heating pellets
-
Power generation
-
Biomass energy production
