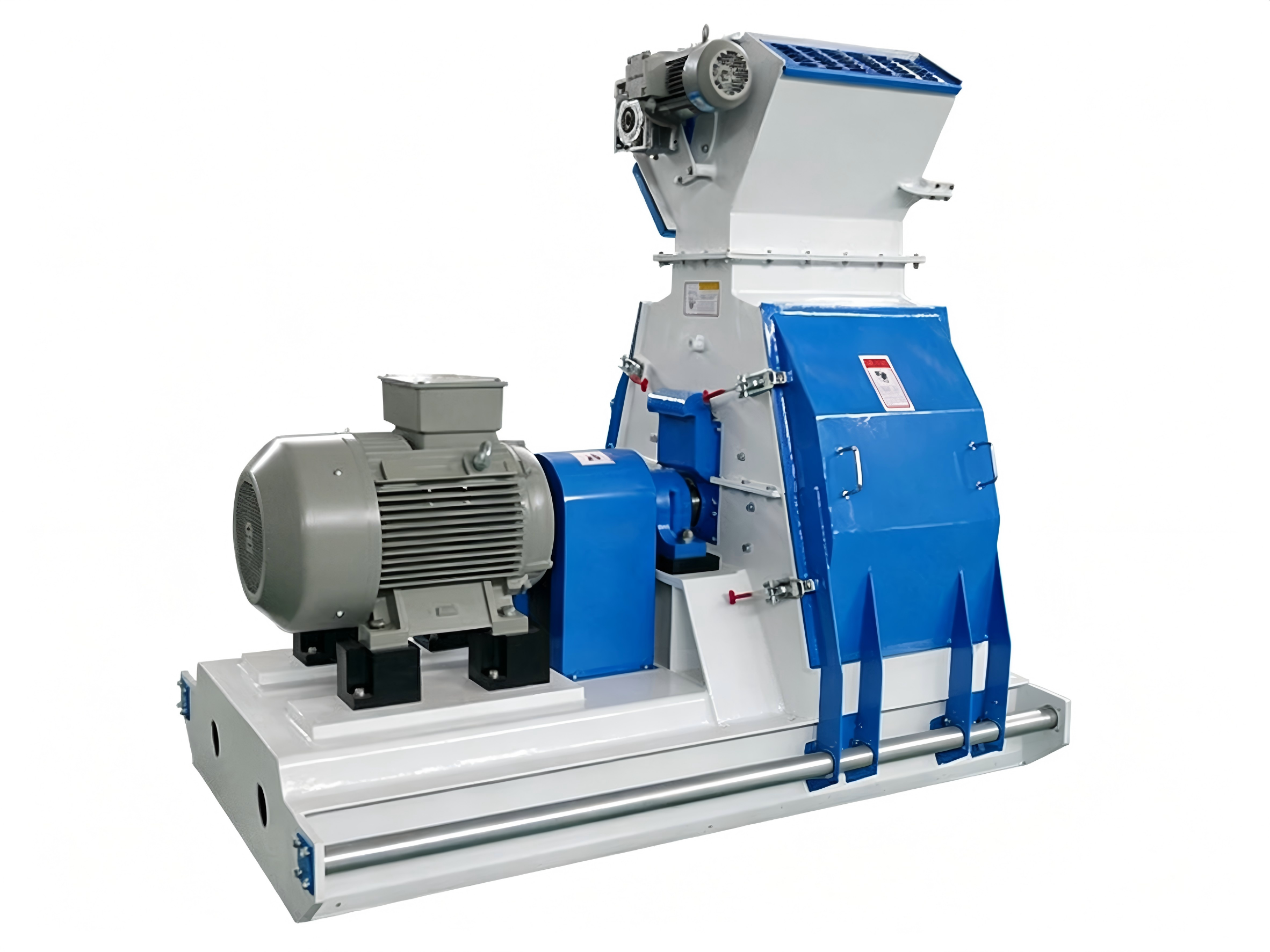

Hammer Mill – High Efficiency & Low Noise Feed Grinding Machine
Product Overview
our hammer fully meets the diversified crushing requirements of ordinary feed mills, aquatic feed factories, and agricultural fine-processing enterprises, serving as an ideal core crushing equipment for modern feed production lines.
Wide Application & Customized Crushing Capacity
This hammer mill is compatible with a wide range of raw materials, including corn, sorghum, wheat, beans, cottonseed meal, rapeseed meal, and other common feed ingredients. It is uniquely optimized for high-moisture and high-fiber raw materials, effectively solving the crushing difficulties that ordinary grinders struggle with when processing special-texture materials.
Beyond standard feed production, it also provides reliable fine grinding solutions for aquatic feed, special animal feed, and pharmaceutical fine powder manufacturing scenarios, featuring strong industry adaptability.
Core Product Advantages
1. Wear-Resistant & Durable Structure, Lower Operating Cost
Fitted with high-quality tungsten carbide sprayed hammers, the machine core features excellent wear resistance and ultra-long service life. It effectively reduces the frequency of accessory replacement and daily maintenance workload, greatly cutting long-term production and operation costs for enterprises.
2. Direct-Drive Transmission, Stable & Efficient Operation
The motor and rotor adopt an integrated base design and direct drive structure, realizing lossless and efficient power transmission. All rotors undergo strict dynamic balance calibration, ensuring low vibration, low noise, and stable continuous operation. It supports long-hour high-intensity industrial production with an extremely low failure rate.
3. Humanized & Safe Operation, Easy Fineness Adjustment
The compact overall structure optimizes workshop floor space utilization. The screen sieve can be replaced quickly and effortlessly, enabling free switching of grinding fineness. It supports fine grinding with a mesh size of 0.5 mm–3.0 mm to meet different particle size standards. Equipped with a professional door body safety interlock device, it eliminates potential safety hazards during equipment operation to ensure production safety.
4. Diversified Model Matching, Flexible Production Scaling
The series includes multiple models with different rotor configurations, hammer quantities, and crushing chamber widths. Matched with 3 mm–4 mm standard sieves, the adjustable output ranges from 5 t/h to 38 t/h. It can flexibly adapt to small-batch trial production and large-scale continuous industrial production, perfectly matching different production line scales.
Technical Specifications
| Model | Rotor Diameter (mm) | Hammer (pcs) | Chamber Width (mm) | Power (kW) | Capacity – 3mm Sieve (t/h) | Capacity – 4mm Sieve (t/h) | Dimension (mm) |
| SYSP66×40 | 660 | 40 | 400 | 37 | 5–6 | 6–8 | 1790×1340×1455 |
| SYSP66×40 | 660 | 40 | 400 | 45 | 7–8 | 8–10 | 1790×1340×1455 |
| SYSP66×60 | 660 | 64 | 600 | 55 | 8–10 | 10–13 | 2175×1340×1455 |
| SYSP66×60 | 660 | 64 | 600 | 75 | 10–12 | 12–14 | 2175×1340×1455 |
| SYSP66×80 | 660 | 88 | 800 | 90 | 12–16 | 16–20 | 2620×1340×1455 |
| SYSP66×80 | 660 | 88 | 800 | 110 | 16–20 | 18–22 | 2620×1340×1455 |
| SYSP66×100 | 660 | 100 | 1000 | 132 | 18–24 | 23–26 | 3020×1340×1455 |
| SYSP66×100 | 660 | 100 | 1000 | 160 | 20–24 | 24–28 | 3020×1340×1455 |
| SYSP66×125 | 660 | 125 | 1250 | 180 | 28–30 | 30–36 | 3530×1340×1455 |
| SYSP66×125 | 660 | 125 | 1250 | 220 | 32–38 | 35–45 | 3530×1340×1455 |
Key Advantages
| Feature | Benefit |
|---|---|
| Tungsten carbide sprayed hammers | Superior wear resistance, extended service life, lower replacement costs |
| Direct-drive transmission | Efficient power delivery, low vibration, stable operation |
| Quick-change sieve system | Fast fineness adjustment (0.5–3.0 mm) |
| Safety interlock door | Operator protection during maintenance |
| Multiple model & power options | 5–45 t/h capacity for diverse production scales |
| High-moisture adaptability | Handles challenging feed materials with ease |
Applications
-
Feed mills: Corn, sorghum, wheat, beans, and oilseed meals
-
Aquatic feed plants: Fine grinding for fish and shrimp feed formulations
-
Specialty feed: High-fiber and high-moisture raw material processing
-
Pharmaceutical & fine powder: Precise particle size reduction
One-Stop Crushing Solution
We provide complete crushing solutions including model selection, production line matching, and after-sales maintenance. Whether you need small-scale experimental grinding or large-volume continuous industrial crushing, the SYSP66 Series can be customized to match your actual raw material characteristics, required fineness, and output demands—maximizing your production efficiency.
